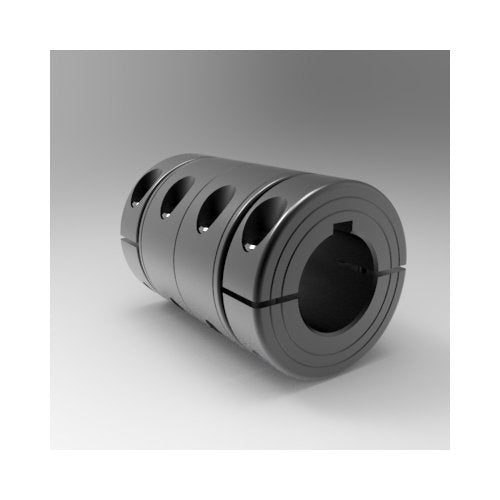

Split Precision Sleeve Couplings with Keyways
Split Precision Sleeve Couplings with Keyways
SKU:ROU-87a41f
Achieve precise shaft alignment with our Two-Piece Split Precision Sleeve Couplings featuring Accu-Clamp™ design for high strength and easy assembly. Ideal for steel shafting.
Regular price
$141.04
Regular price
Sale price
$141.04
Unit price
per
Initiate Order
Split Precision Sleeve Couplings with Keyways
$141.04
Quantity: 1
Claim Your Seller Account
Split Precision Sleeve Couplings with Keyways
$141.04
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance shaft alignment with our Two-Piece Split Precision Sleeve Couplings featuring a balanced design for axial runout less than .001 TIR. This solid center coupling boasts a keyway, smooth bore, and Accu-Clamp™ self-centering clamping collars for convenience and precision. Precision machined from steel with high clamping power, this coupling allows easy assembly and adjustment while protecting shafts from damage.
Product Specifications
Dimensional Attributes Bore Size A
1 in
Dimensional Attributes Bore Size B
1 in
Dimensional Attributes Keyway A
1/4 in
Dimensional Attributes Keyway B
1/4 in
Dimensional Attributes Outside Diameter
2.000 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 3/4
Dimensional Attributes Total Length
3.000 in
Specifications Alloy
1215
Specifications Approximate Weight
1.78 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
141.04 USD
Specifications Material
Steel
Specifications Part Number
5L100100FKPSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
High Strength
Specifications Upc Code
662786018817
