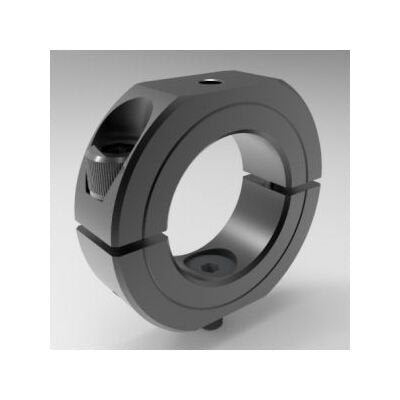

Split Shaft Collar Stackable Clamp-Type - Steel Two-Piece

Name: Split Shaft Collar Stackable Clamp-Type - Steel Two-Piece
Brand: Stafford Manufacturing Corp.
SKU: FLA-1770fa
Price: 40.47 USD
Availability: OutOfStock

SKU:FLA-1770fa

Versatile Split Shaft Collar for secure and easy shaft mounting. Two-piece design, high clamping power, stackable. Steel, RoHS2 & REACH compliant.

$40.47

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Split Shaft Collar Stackable Clamp-Type is a versatile solution for mounting shafts securely and easily. Featuring a two-piece construction with drilled and tapped flats for attachment, these collars can be placed anywhere on a shaft. They offer high clamping power, precision machining, and are non-marring. With a low profile and stackable design, these collars are ideal for various applications. Available in Steel material, RoHS2 and REACH compliant.

Product Specifications

Dimensional Attributes Bore Size

1-1/4 in

Dimensional Attributes Bottom Threaded Hole

1/4-20

Dimensional Attributes Distance Across Flats

1.874 in

Dimensional Attributes Mounting Screw

#10 Flat Head Cap Screw

Dimensional Attributes Outside Diameter

2.063 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

1/4-28 x 5/8

Dimensional Attributes Top Threaded Hole

10-24

Dimensional Attributes Width

0.500 in

Specifications Alloy

1215

Specifications Approximate Weight

0.25 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications List Price

40.47 USD

Specifications Material

Steel

Specifications Part Number

19L104ST

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Solution

Specifications Type

Low Profile

Specifications Upc Code

662786026201
