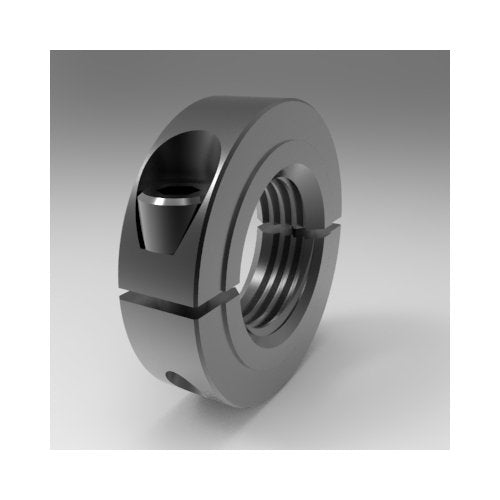

Split Two-Piece UNF/UNC Threaded Hub Shaft Collar

Name: Split Two-Piece UNF/UNC Threaded Hub Shaft Collar
Brand: Stafford Manufacturing Corp.
SKU: ROU-d651f2
Price: 14.99 USD
Availability: OutOfStock

SKU:ROU-d651f2

Precision-machined Split Hub Shaft Collar for bearing inner-race applications, provides high clamping power, easy to adjust.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Split Two-Piece UNF/UNC Threaded Hub Shaft Collar is precision-machined for optimal performance, making it ideal for bearing inner-race applications. With a low-profile design and black oxide finish, this collar provides superior holding power over set-screw types. Easy to adjust, non-marring, and completely disassemblable for versatile placement on shafts. Crafted from steel and compliant with RoHS2 and REACH standards.

Product Specifications

Dimensional Attributes Outside Diameter

1.500 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

1/4-28 x 5/8

Dimensional Attributes Threaded Bore Size

3/4-16

Dimensional Attributes Width

0.500 in

Specifications Alloy

1215

Specifications Approximate Weight

0.17 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

HUB8L012F

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Solution

Specifications Type

Low Profile

Specifications Upc Code

662786030208
