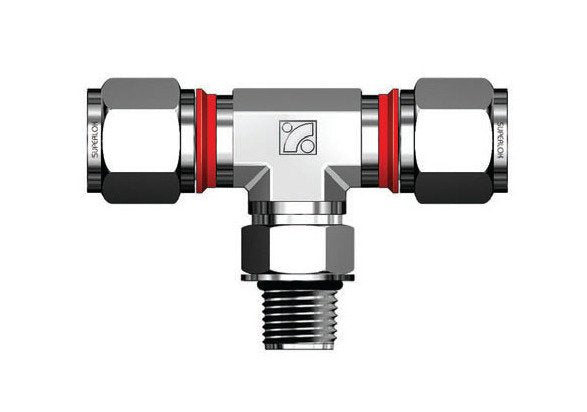

SPMBTI 1/2 Inch Positionable Male Branch Tee Fitting
SPMBTI 1/2 Inch Positionable Male Branch Tee Fitting
SKU:SPM-f14714
The SPMBTI 1/2 Inch Male Branch Tee: Secure connections, enhanced safety, industry-leading design.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
SPMBTI 1/2 Inch Positionable Male Branch Tee Fitting
$24.99
Quantity: 1
Claim Your Seller Account
SPMBTI 1/2 Inch Positionable Male Branch Tee Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SPMBTI 1/2 Inch Positionable Male Branch Tee Fitting is designed to connect fractional tubes to SAE/MS straight thread bosses with precision and reliability. Made from high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, this fitting ensures a secure and leak-free connection. The i-Fitting® components, such as the built-in gap gauge check ring, enhance installer safety in high-pressure environments, leading to improved productivity and cost-saving. With dimensions meeting industry standards and a patented design by BMT, this fitting offers durability and performance in valve connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

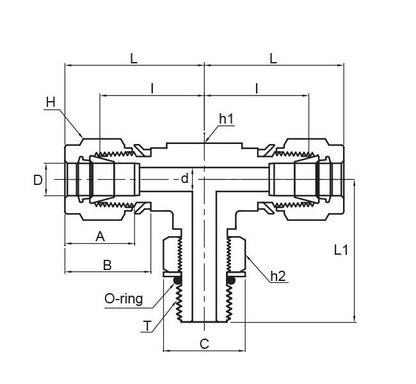

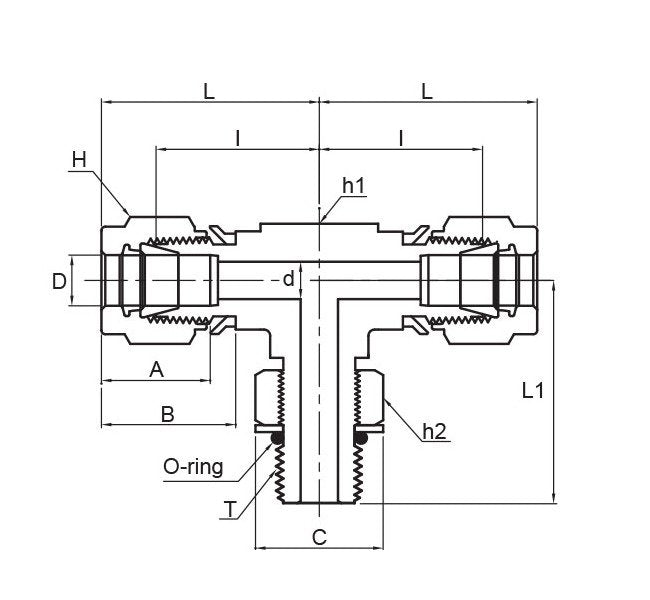

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
22.86 mm
Technical Specs Dimension B
21.84 mm
Technical Specs Dimension C
25.65 mm
Technical Specs Dimension I
27.43 mm
Technical Specs Dimension L
37.59 mm
Technical Specs Dimension L1
37.85 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
10.41 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Straight Thread T U
3/4-16 mm
Technical Specs Tube Outside Diameter D
1/2 in
Technical Specs Width Across Flat H
7/8 in
Technical Specs Width Across Flat H1
13/16 in
Technical Specs Width Across Flat H2
7/8 in
