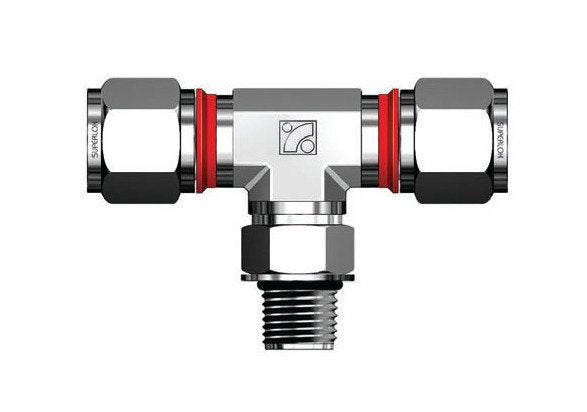

SPMBTI Series 1/2" Tube Male Branch Tee Fitting
SPMBTI Series 1/2" Tube Male Branch Tee Fitting
SKU:SPM-40bc81
High-quality male branch tee fitting for precise valve connections, with i-Fitting® components for perfect compression and enhanced safety.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
SPMBTI Series 1/2" Tube Male Branch Tee Fitting
$24.99
Quantity: 1
Claim Your Seller Account
SPMBTI Series 1/2" Tube Male Branch Tee Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SPMBTI Series 1/2" Tube Male Branch Tee Fitting is a high-quality solution for connecting fractional tubes to female ISO parallel threads. Made from a range of durable materials including Alloy 625, Stainless Steel, and Aluminum, this fitting features i-Fitting® components that ensure perfect compression, enhance installer safety, and boost productivity. With dimensions designed for precision and a patented design by BMT, this fitting is ideal for valve connections in various applications.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

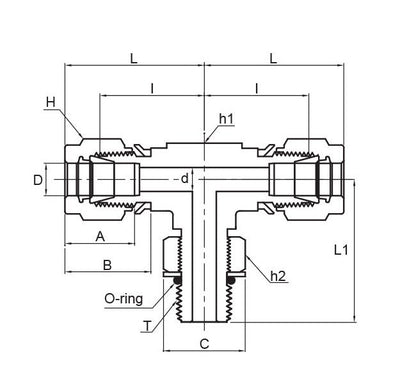

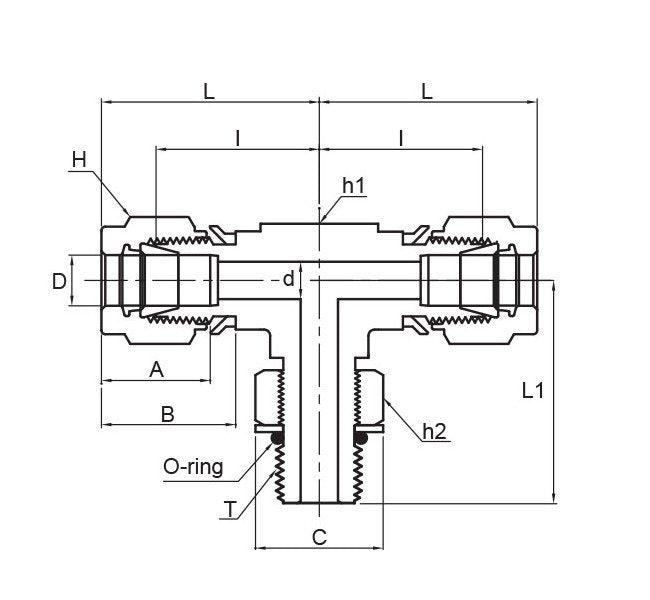

Technical Specs Connection Type
Female
Technical Specs Dimension A
22.86 mm
Technical Specs Dimension B
21.84 mm
Technical Specs Dimension C
32.0 mm
Technical Specs Dimension I
27.94 mm
Technical Specs Dimension L
38.10 mm
Technical Specs Dimension L1
43.43 mm
Technical Specs Dimension T Pf
1/2 in
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
10.41 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
1/2 in
Technical Specs Width Across Flat H
7/8 in
Technical Specs Width Across Flat H1
15/16 in
Technical Specs Width Across Flat H2
1-1/16 in
