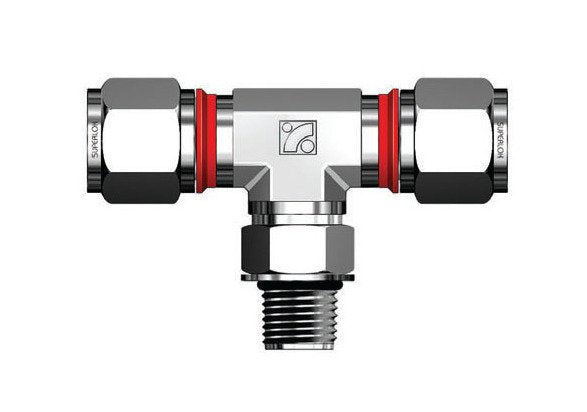

SPMBTI Series 1/4" Positionable Male Branch Tee Fitting

Name: SPMBTI Series 1/4" Positionable Male Branch Tee Fitting
Brand: Superlok-Mako Products LLC
SKU: SPM-65dc67
Price: 29.99 USD
Availability: OutOfStock

SKU:SPM-65dc67

Connect fractional tubes to female ISO parallel threads with the SPMBTI Series 1/4" Male Branch Tee fitting. Patented i-Fitting® design ensures perfect compression and installer safety.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SPMBTI Series 1/4 Inch Positionable Male Branch Tee Fitting is designed to connect fractional tubes to female ISO parallel threads seamlessly. Crafted with materials like Alloy 625, Carbon Steel, and Stainless Steel, this fitting features a patented i-Fitting® design with essential components ensuring perfect compression, installer safety, and increased productivity. With dimensions meeting industry standards and a built-in gap gauge, this fitting is ideal for valve connections in various environments.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

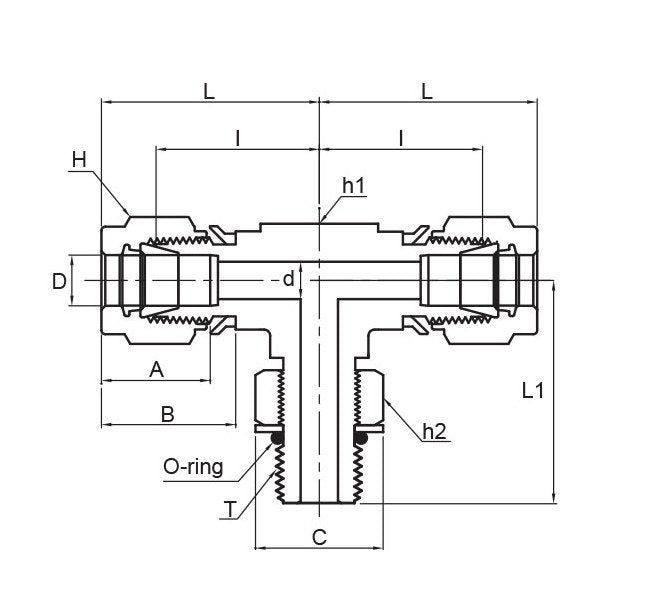

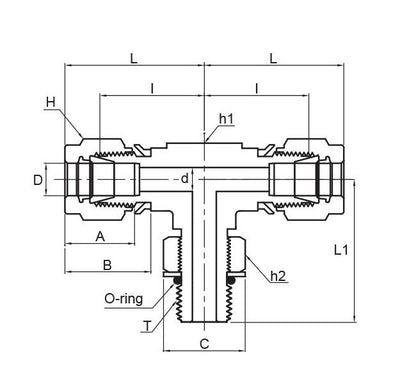

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

Technical Specs Connection Type

Female

Technical Specs Dimension A

15.24 mm

Technical Specs Dimension B

17.78 mm

Technical Specs Dimension C

17.27 mm

Technical Specs Dimension I

19.56 mm

Technical Specs Dimension L

26.92 mm

Technical Specs Dimension L1

26.42 mm

Technical Specs Dimension T Pf

1/8 in

Technical Specs Material

Technical Specs Minimum Dimension D

4.06 mm

Technical Specs Standard Size

1/4 to 1 in

Technical Specs Tube Outside Diameter D

1/4 in

Technical Specs Width Across Flat H

9/16 in

Technical Specs Width Across Flat H1

1/2 in

Technical Specs Width Across Flat H2

9/16 in
