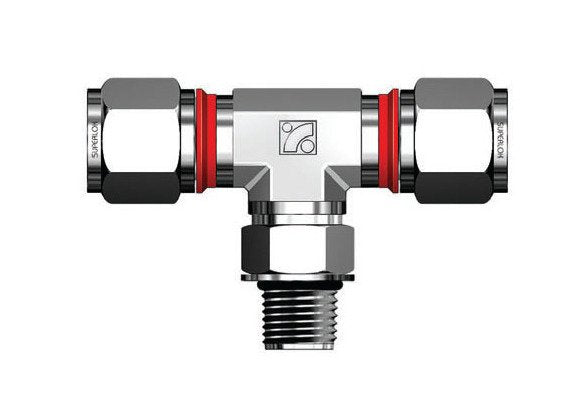

The SPMBTI Series 1/4" Tube Positionable Male Branch Tee Fitting is designed to connect fractional tubes to female ISO parallel threads. It features innovative i-Fitting® components including body, front & back ferrule, nut, identification band, and check ring. This fitting ensures perfect compression, enhancing safety in high-pressure environments and increasing productivity. Crafted from a variety of durable materials, it meets stringent industry standards and is suitable for valve connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

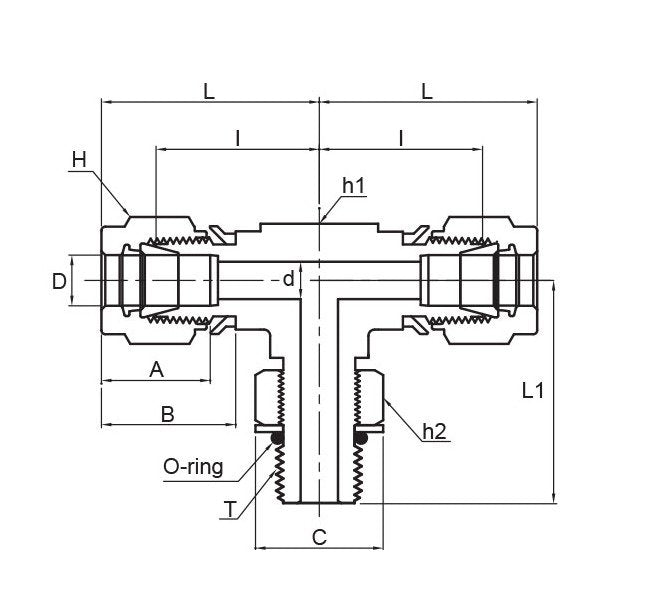

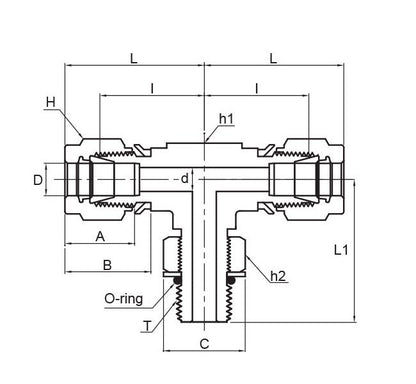

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
15.24 mm
Technical Specs Dimension B
17.78 mm
Technical Specs Dimension C
22.86 mm
Technical Specs Dimension I
21.59 mm
Technical Specs Dimension L
28.96 mm
Technical Specs Dimension L1
32.26 mm
Technical Specs Dimension T Pf
1/4 in
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.83 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
1/4 in
Technical Specs Width Across Flat H
9/16 in
Technical Specs Width Across Flat H1
5/8 in
Technical Specs Width Across Flat H2
3/4 in
