SPMBTI Series 3/8 Tube OD Positionable Male Branch Tee Fitting

Name: SPMBTI Series 3/8 Tube OD Positionable Male Branch Tee Fitting
Brand: Superlok-Mako Products LLC
SKU: SPM-c75a0e
Price: 24.99 USD
Availability: OutOfStock

SKU:SPM-c75a0e

Discover precision and safety with the SPMBTI Series Positionable Male Branch Tee Fitting. Patented i-Fitting® design for perfect compression and enhanced safety in high-pressure applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

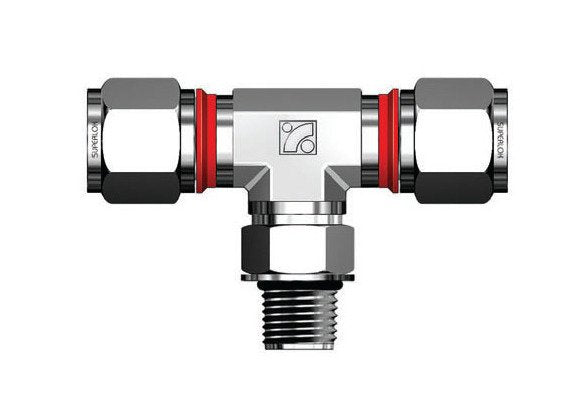

The SPMBTI Series 3/8 Inch Tube OD Positionable Male Branch Tee Fitting is a high-quality connector that seamlessly links fractional tubes to female ISO parallel threads. Crafted from a range of durable materials including Alloy 625, Stainless Steel, and Aluminum, this fitting features innovative i-Fitting® components for enhanced safety and productivity. With its patented design by BMT, the fitting offers precise compression and is adaptable to diverse valve connections, making it ideal for high-pressure and hazardous chemical environments.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

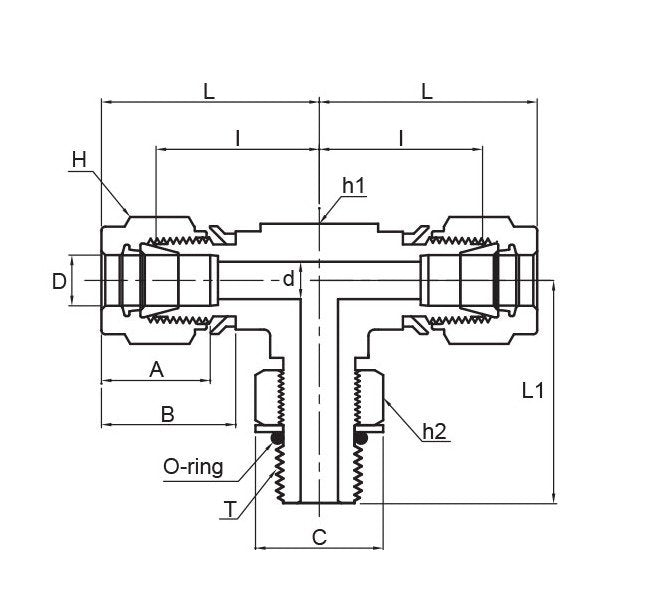

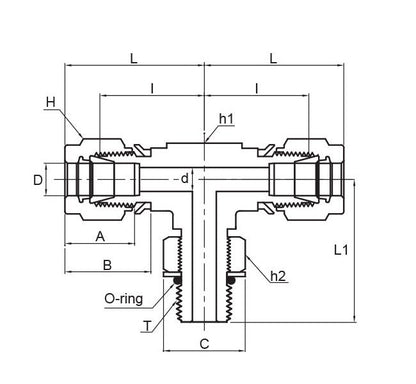

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

Technical Specs Connection Type

Female

Technical Specs Dimension A

15.24 mm

Technical Specs Dimension B

19.30 mm

Technical Specs Dimension C

22.86 mm

Technical Specs Dimension I

23.11 mm

Technical Specs Dimension L

30.48 mm

Technical Specs Dimension L1

32.26 mm

Technical Specs Dimension T Pf

1/4 in

Technical Specs Material

Technical Specs Minimum Dimension D

5.08 mm

Technical Specs Standard Size

1/4 to 1 in

Technical Specs Tube Outside Diameter D

3/8 in

Technical Specs Width Across Flat H

11/16 in

Technical Specs Width Across Flat H1

5/8 in

Technical Specs Width Across Flat H2

3/4 in
