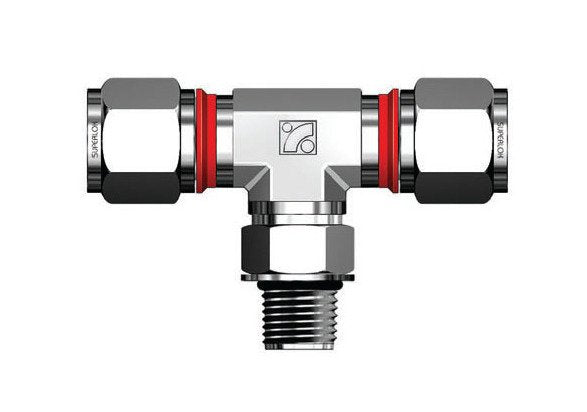

SPMBTI Series 6mm Positionable Male Branch Tee Fitting
SPMBTI Series 6mm Positionable Male Branch Tee Fitting
SKU:SPM-5baace
Precision-engineered 6mm male branch tee fitting with i-Fitting® components for safe, efficient valve connections.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SPMBTI Series 6mm Positionable Male Branch Tee Fitting
$29.99
Quantity: 1
Claim Your Seller Account
SPMBTI Series 6mm Positionable Male Branch Tee Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SPMBTI Series 6mm Positionable Male Branch Tee Fitting is designed to connect metric tubes to female ISO parallel threads with precision and reliability. Crafted from high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, this fitting ensures durability and performance in industrial applications. Featuring the innovative i-Fitting® components with a built-in gap gauge, this fitting eliminates over- and under-tightening problems, enhancing installer safety and productivity. With dimensions meeting industry standards and a patented design by BMT, this fitting is ideal for valve connections in high-pressure and chemical environments.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

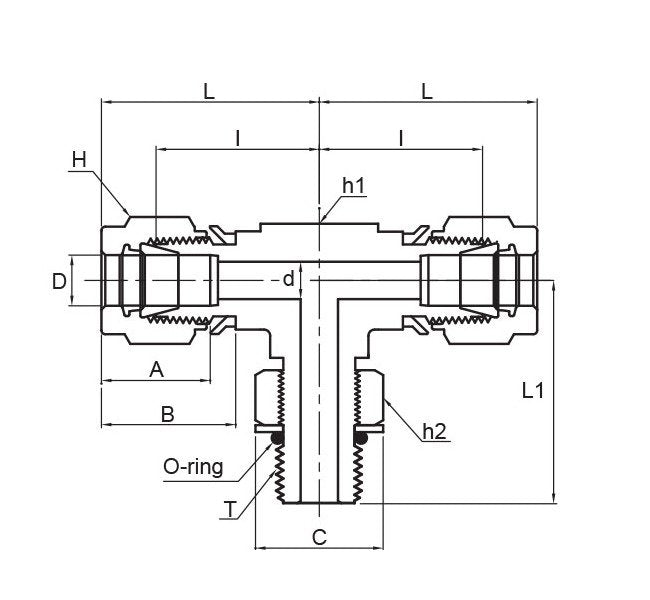

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
15.3 mm
Technical Specs Dimension B
17.7 mm
Technical Specs Dimension C
17.3 mm
Technical Specs Dimension I
19.6 mm
Technical Specs Dimension L
27.0 mm
Technical Specs Dimension L1
26.4 mm
Technical Specs Dimension T Pf
1/8 in
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.0 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
6 mm
Technical Specs Width Across Flat H
14 mm
Technical Specs Width Across Flat H1
12.7 mm
Technical Specs Width Across Flat H2
14.3 mm
