SPMBTI Series 8mm Positionable Male Branch Tee Fitting
SPMBTI Series 8mm Positionable Male Branch Tee Fitting
SKU:SPM-4d6938
Enhance tube connections with the SPMBTI Series 8mm Positionable Male Branch Tee Fitting for safety and efficiency.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
SPMBTI Series 8mm Positionable Male Branch Tee Fitting
$25.99
Quantity: 1
Claim Your Seller Account
SPMBTI Series 8mm Positionable Male Branch Tee Fitting
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

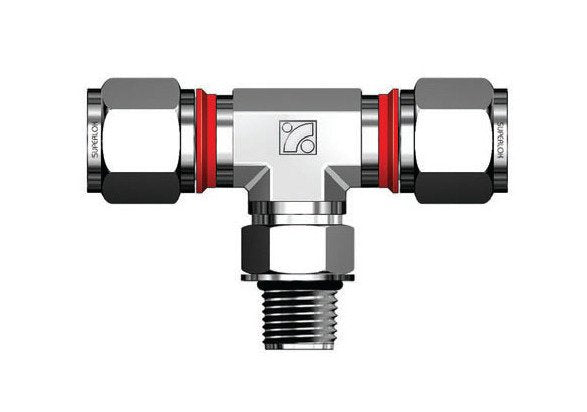

The SPMBTI Series 8mm Positionable Male Branch Tee Fitting is a precision-engineered connector that seamlessly joins metric tubes to female ISO parallel threads. Crafted from high-quality materials such as Alloy 625, Alloy 825, Stainless Steel, and more, this fitting offers exceptional durability and reliability. Its unique design, featuring i-Fitting® components like a check ring for perfect compression, enhances safety in high-pressure environments. Ideal for valve connections, this fitting not only ensures a secure fit but also boosts productivity and cost-efficiency.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

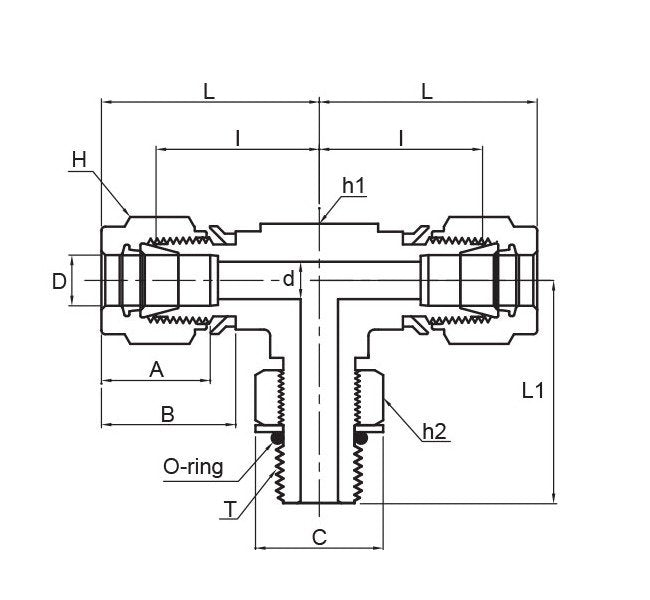

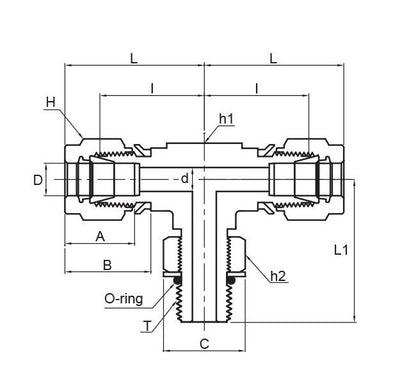

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
16.2 mm
Technical Specs Dimension B
18.6 mm
Technical Specs Dimension C
17.3 mm
Technical Specs Dimension I
21.3 mm
Technical Specs Dimension L
28.8 mm
Technical Specs Dimension L1
27.4 mm
Technical Specs Dimension T Pf
1/8 in
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.0 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
8 mm
Technical Specs Width Across Flat H
16 mm
Technical Specs Width Across Flat H1
14.3 mm
Technical Specs Width Across Flat H2
14.3 mm
