SPMBTI Series 8mm Tube Branch Tee Fitting
SPMBTI Series 8mm Tube Branch Tee Fitting
SKU:SPM-7dc11e
Enhance connectivity with the SPMBTI Series 8mm Positionable Male Branch Tee Fitting. Patented design ensures safety and productivity.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
SPMBTI Series 8mm Tube Branch Tee Fitting
$39.99
Quantity: 1
Claim Your Seller Account
SPMBTI Series 8mm Tube Branch Tee Fitting
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

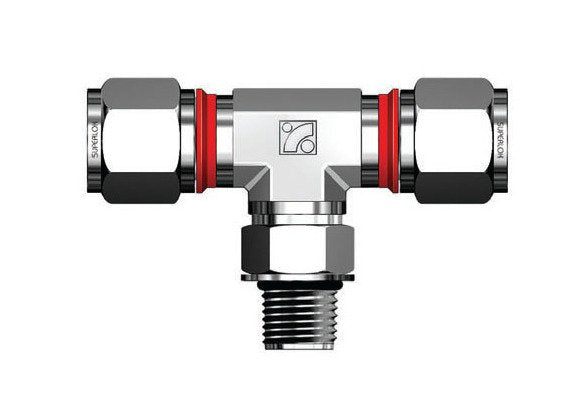

The SPMBTI Series 8mm Positionable Male Branch Tee Fitting is designed to seamlessly connect metric tubes to female ISO parallel threads. Crafted from high-quality materials like Alloy 625, Alloy 825, and Stainless Steel, this fitting ensures durable performance in various industrial settings. Featuring a patented i-Fitting® design, it enhances installer safety, improves productivity, and eliminates over-tightening risks.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

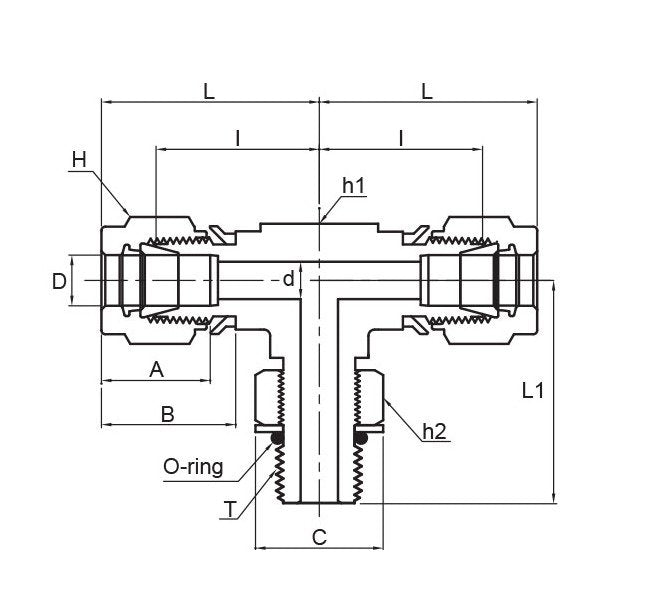

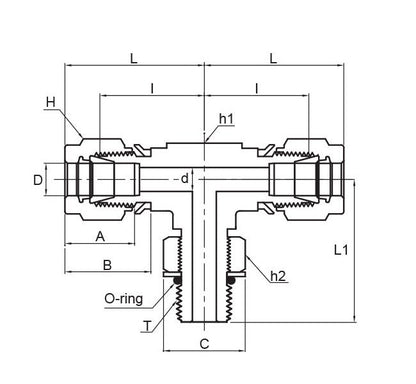

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
16.2 mm
Technical Specs Dimension B
18.6 mm
Technical Specs Dimension C
22.9 mm
Technical Specs Dimension I
22.4 mm
Technical Specs Dimension L
29.9 mm
Technical Specs Dimension L1
32.2 mm
Technical Specs Dimension T Pf
1/4 in
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
5.9 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
8 mm
Technical Specs Width Across Flat H
16 mm
Technical Specs Width Across Flat H1
15.8 mm
Technical Specs Width Across Flat H2
19 mm
