SPMEI 12mm Positionable Male Elbow
SPMEI 12mm Positionable Male Elbow
SKU:SPM-ea27b4
Premium 12mm male elbow for precise tube connections, enhanced safety, and productivity. Industry-leading design.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
SPMEI 12mm Positionable Male Elbow
$34.99
Quantity: 1
Claim Your Seller Account
SPMEI 12mm Positionable Male Elbow
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

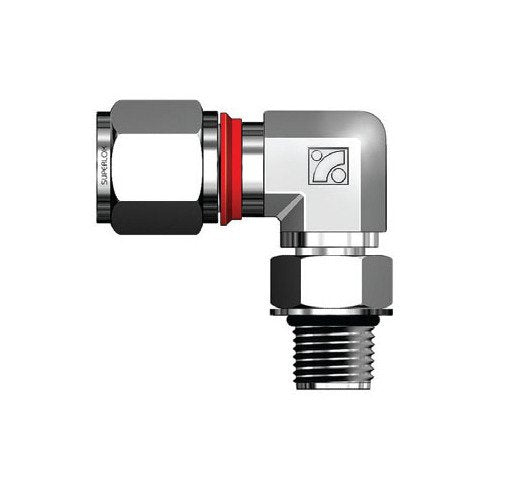

The SPMEI Series 12mm Positionable Male Elbow is designed to connect metric tubes to female ISO parallel threads with precision and reliability. Crafted from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this elbow ensures durability and optimal performance in diverse environments. Featuring i-Fitting® components for perfect compression, increased safety in high-pressure settings, and improved productivity, it offers a patented design by BMT that revolutionizes industry standards. With superior craftsmanship and innovative features, this male elbow is ideal for applications requiring efficiency, safety, and cost-effectiveness.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

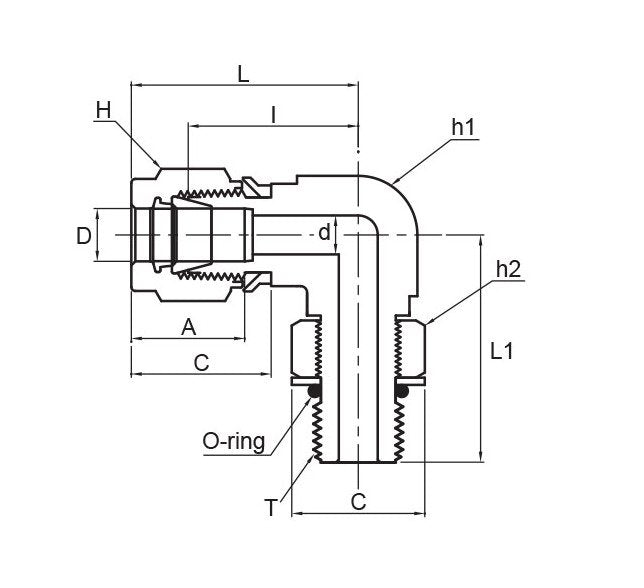

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Male
Technical Specs Dimension A
22.8 mm
Technical Specs Dimension B
22.0 mm
Technical Specs Dimension C
22.9 mm
Technical Specs Dimension I
25.9 mm
Technical Specs Dimension L
36.0 mm
Technical Specs Dimension L1
35.0 mm
Technical Specs Dimension T Pf
1/4 in
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
5.9 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
12 mm
Technical Specs Width Across Flat H
22 mm
Technical Specs Width Across Flat H1
20.6 mm
Technical Specs Width Across Flat H2
19 mm
