SPMEI Series Positionable Male Elbow - 1/4" Tube, 15.24mm Dimension A, 16.51mm Dimension C
SPMEI Series Positionable Male Elbow - 1/4" Tube, 15.24mm Dimension A, 16.51mm Dimension C
SKU:SPM-c9c7d1
Enhance connectivity with precision and safety using the SPMEI Series Positionable Male Elbow - 1/4" Tube
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
SPMEI Series Positionable Male Elbow - 1/4" Tube, 15.24mm Dimension A, 16.51mm Dimension C
$24.99
Quantity: 1
Claim Your Seller Account
SPMEI Series Positionable Male Elbow - 1/4" Tube, 15.24mm Dimension A, 16.51mm Dimension C
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

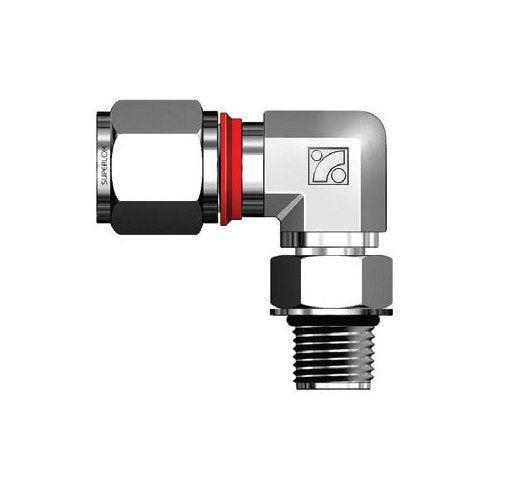

The SPMEI Series 1/4 Inch Tube Positionable Male Elbow is designed to connect fractional tubes to SAE/MS straight threads seamlessly. Constructed from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this elbow ensures durability and reliability. Featuring the innovative i-Fitting® components such as the built-in gap gauge check ring, it enhances installer safety in high-pressure environments, improves productivity, and reduces costs. With industry-changing patented design and broad compatibility (Standard Size: 1/4 to 1 inch), this male elbow is a versatile solution for various applications.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

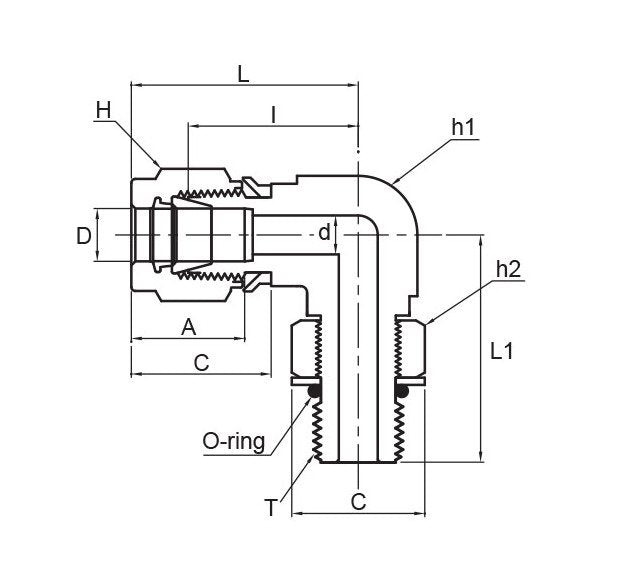

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Male
Technical Specs Dimension A
15.24 mm
Technical Specs Dimension B
17.78 mm
Technical Specs Dimension C
16.51 mm
Technical Specs Dimension I
21.08 mm
Technical Specs Dimension L
28.45 mm
Technical Specs Dimension L1
28.45 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.83 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Straight Thread T U
7/16-20 mm
Technical Specs Tube Outside Diameter D
1/4 in
Technical Specs Width Across Flat H
9/16 in
Technical Specs Width Across Flat H1
1/2 in
Technical Specs Width Across Flat H2
9/16 in
