Spring-Loaded Captive Panel Screw - Metric Type PF7MF
Spring-Loaded Captive Panel Screw - Metric Type PF7MF
SKU:PEM-7b0857
Effortlessly secure panels with the Spring-Loaded Captive Panel Screw - Metric Type PF7MF. Easy installation, flush finish, and top-quality materials.
Regular price
$9.99
Regular price
Sale price
$9.99
Unit price
per
Initiate Order
Spring-Loaded Captive Panel Screw - Metric Type PF7MF
$9.99
Quantity: 1
Claim Your Seller Account
Spring-Loaded Captive Panel Screw - Metric Type PF7MF
$9.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

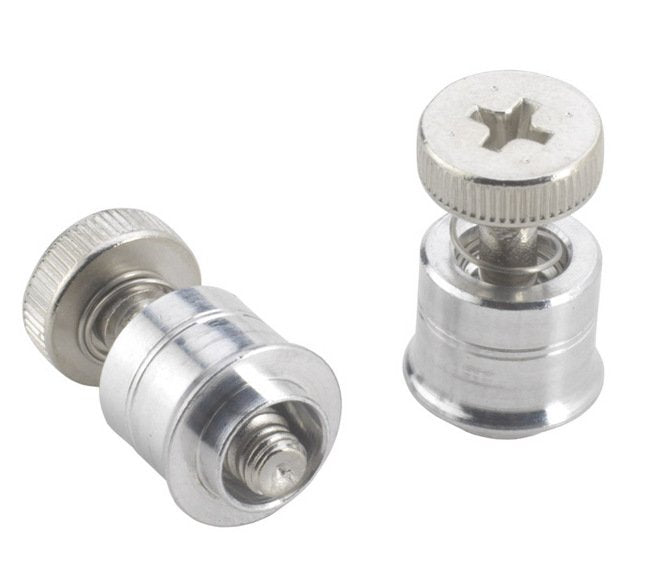

The Spring-Loaded Captive Panel Screw, Metric Type PF7MF, is ideal for close centerline-to-edge applications, offering easy installation without requiring high force. With a thread size of M4 x 0.7 and top-quality materials like heat-treated carbon steel for the screw, aluminum for the retainer, and 300 series stainless steel for the spring, this screw ensures durability and reliability. It fits diverse panel hardness levels and installs flush on the panel's back side, providing a secure and professional fastening solution.
Product Specifications

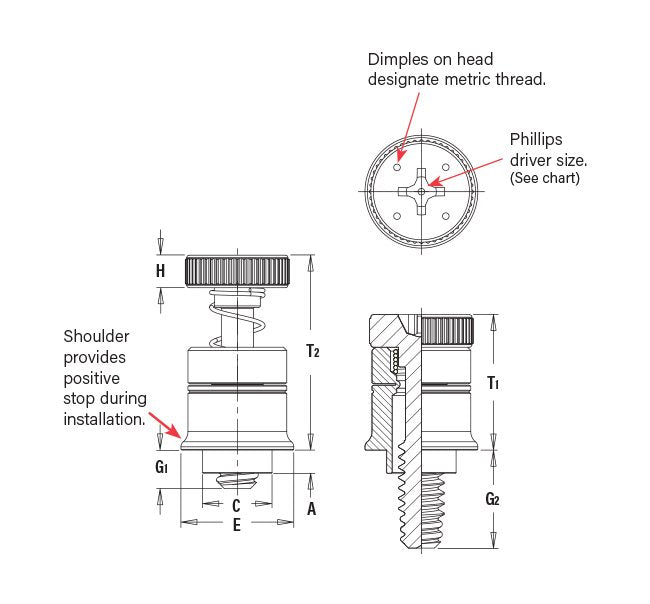

Specifications A Shank Max
1.83 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
6.74 mm
Specifications E 025
10.29 mm
Specifications Finish Retainer
Natural finish
Specifications Finish Screw
Bright nickel over copper flash
Specifications Finish Spring
Natural Finish
Specifications G1 064
2.54 mm
Specifications G2 064
7.62 mm
Specifications Hole Size In Sheet 013
6.76 mm
Specifications H 025
3.00 mm
Specifications Material Retainer
Aluminum
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Sheet Thickness
1.52 mm
Specifications Screw Length Code
1
Specifications T1 Nom
10.92 mm
Specifications T2 Nom
16.00 mm
Specifications Thread Code
M4
Specifications Thread Size
M4 x 0.7
Specifications Thread Specification
ASME B1.13M, 6g
Specifications Type
PF7MF
