Spring-Loaded Captive Panel Screw - Metric Type PF7MF
Spring-Loaded Captive Panel Screw - Metric Type PF7MF
SKU:PEM-56a015
Precision-engineered Spring-Loaded Captive Panel Screw for secure, flush installation on panels. Meets ASME B1.13M standards.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Spring-Loaded Captive Panel Screw - Metric Type PF7MF
$14.99
Quantity: 1
Claim Your Seller Account
Spring-Loaded Captive Panel Screw - Metric Type PF7MF
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

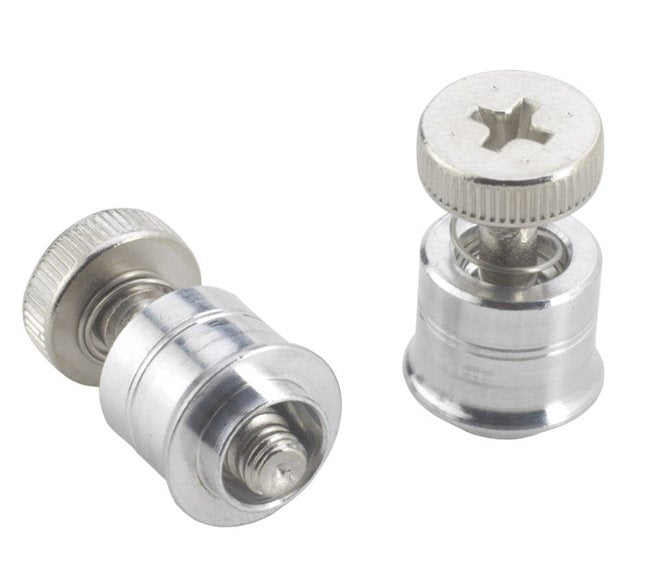

The Spring-Loaded Captive Panel Screw, Metric Type PF7MF, is engineered for precise applications, offering easy installation without high force requirements. It securely fastens into panels of varying hardness, remaining flush on the back side. With a thread size of M4 x 0.7, this screw meets ASME B1.13M standards and features a durable construction with materials including heat-treated carbon steel, aluminum retainer, and 300 series stainless steel spring.
Product Specifications

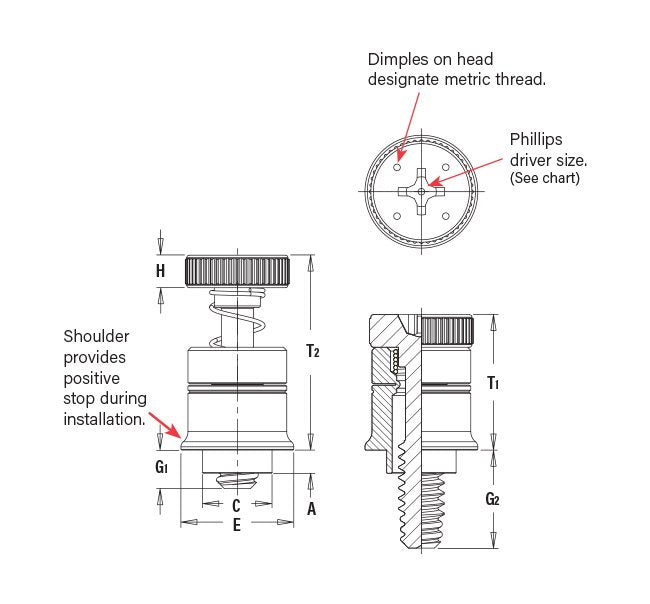

Specifications A Shank Max
1.83 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
6.74 mm
Specifications E 025
10.29 mm
Specifications Finish Retainer
Natural finish
Specifications Finish Screw
Bright nickel over copper flash
Specifications Finish Spring
Natural Finish
Specifications G1 064
1.02 mm
Specifications G2 064
6.1 mm
Specifications Hole Size In Sheet 013
6.76 mm
Specifications H 025
3.00 mm
Specifications Material Retainer
Aluminum
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Sheet Thickness
1.52 mm
Specifications Screw Length Code
0
Specifications T1 Nom
10.92 mm
Specifications T2 Nom
16.00 mm
Specifications Thread Code
M4
Specifications Thread Size
M4 x 0.7
Specifications Thread Specification
ASME B1.13M, 6g
Specifications Type
PF7MF
