Spring-Loaded Captive Panel Screw PF7MF - Metric M3 x 0.5
Spring-Loaded Captive Panel Screw PF7MF - Metric M3 x 0.5
SKU:PEM-bf5632
Durable Spring-Loaded Captive Panel Screw PF7MF for secure and easy installations in various panel types.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Spring-Loaded Captive Panel Screw PF7MF - Metric M3 x 0.5
$12.99
Quantity: 1
Claim Your Seller Account
Spring-Loaded Captive Panel Screw PF7MF - Metric M3 x 0.5
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

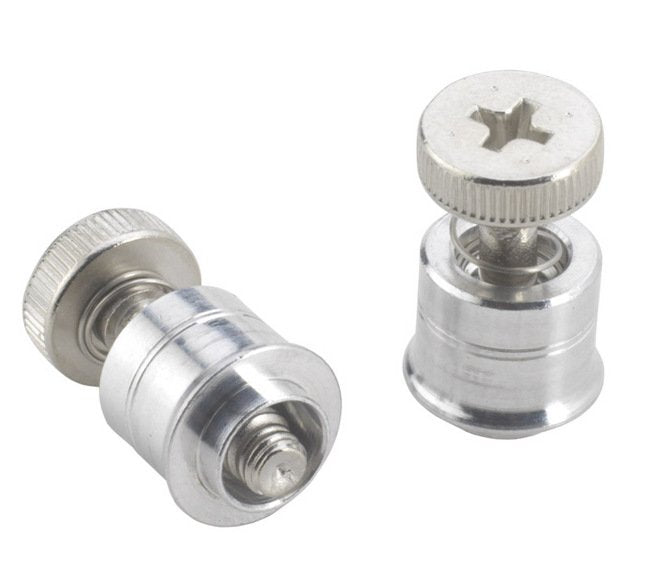

The Spring-Loaded Captive Panel Screw PF7MF is a versatile fastening solution suitable for close centerline-to-edge applications. Featuring a heat-treated carbon steel screw and 300 series stainless steel spring, it ensures durability and secure installations. This screw requires minimal installation force and can be easily mounted into panels of varying hardness. With precise specifications meeting ASME B1.13M standards, it delivers consistent performance. The flare mount design allows for flush installation on the back side of the panel, ensuring a seamless finish.
Product Specifications

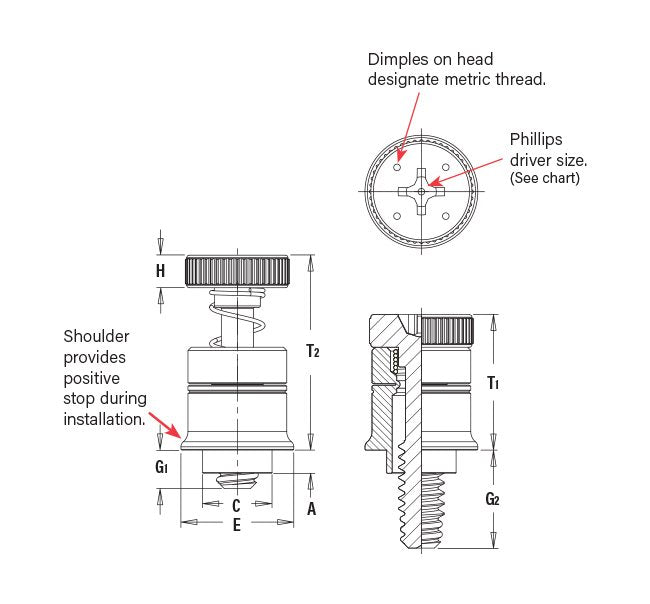

Specifications A Shank Max
1.05 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
4.73 mm
Specifications E 025
7.87 mm
Specifications Finish Retainer
Natural finish
Specifications Finish Screw
Bright nickel over copper flash
Specifications Finish Spring
Natural Finish
Specifications G1 064
2.54 mm
Specifications G2 064
6.86 mm
Specifications Hole Size In Sheet 013
4.75 mm
Specifications H 025
2.5 mm
Specifications Material Retainer
Aluminum
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Sheet Thickness
0.79 mm
Specifications Screw Length Code
1
Specifications T1 Nom
9.65 mm
Specifications T2 Nom
13.97 mm
Specifications Thread Code
M3
Specifications Thread Size
M3 x 0.5
Specifications Thread Specification
ASME B1.13M, 6g
Specifications Type
PF7MF
