Spring-Loaded Captive Panel Screw Tool - Type PFC2P
Spring-Loaded Captive Panel Screw Tool - Type PFC2P
SKU:PEM-05982e
Concealed-head Spring-Loaded Panel Screw Tool for secure, UL approved fastening in diverse applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Spring-Loaded Captive Panel Screw Tool - Type PFC2P
$24.99
Quantity: 1
Claim Your Seller Account
Spring-Loaded Captive Panel Screw Tool - Type PFC2P
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Spring-Loaded Captive Panel Screw Tool in Type PFC2P provides fully concealed-head access for ultimate security. With a thread size of .164-32 (#8-32) and made from high-quality 400 Series Stainless Steel, this tool ensures durability and reliability. It is UL approved and designed for use in sheets with hardness Rockwell B scale of 70 or less. The tool features a #2 Phillips driver size and comes with assorted screw lengths for versatility in various applications. Experience effortless panel fastening with this precision-engineered tool.
Product Specifications

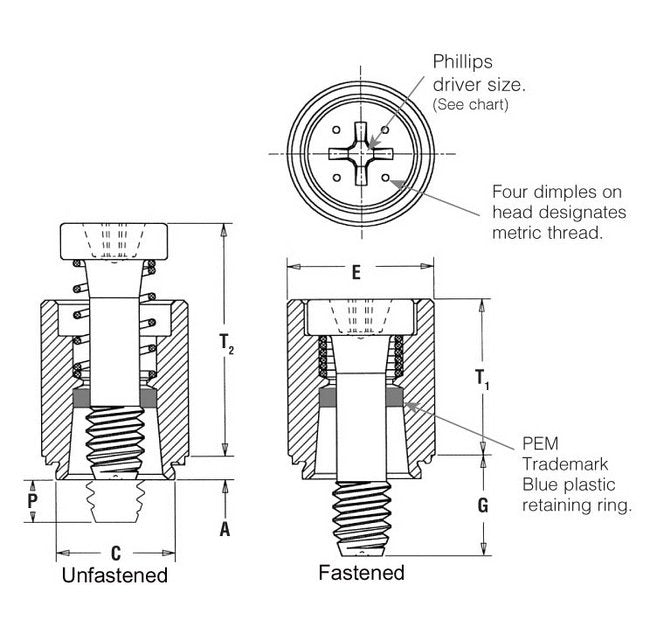

Specifications A Shank Max
.060 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.311 in
Specifications Driver Size
#2 Phillips
Specifications E 010
.375 in
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 70 or Less (Hardness Rockwell âBâ Scale) / HB 125 or Less (Hardness Brinell)
Specifications G 016
.562 in
Specifications Hole Size In Sheet 0003 0000
.312 in
Specifications Material Retainer
300 Series Stainless Steel
Specifications Material Screw
400 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.31 in
Specifications Min Sheet Thickness
.060 in
Specifications P 025
.250 in
Specifications Screw Length Code
94
Specifications T1 Max
.480 in
Specifications T2 Nom
.705 in
Specifications Thread Code
832
Specifications Thread Size
.164-32 (#8;-32)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
PFC2P
