Enhanced captive screw tool for concealed-head access with assorted screw lengths, meeting ANSI standards for secure and efficient fastening on metal sheets and panels.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Spring-Loaded Captive Panel Screw Tool - Type PFC2P offers a fully concealed-head for exclusive tool access. Designed for reliability, it features assorted screw lengths to suit various applications. This tool ensures precision with specifications meeting ANSI standards for threads, materials, and finish options. Ideal for metal sheets and panels, it guarantees enhanced efficiency and durability in fastening operations.

Product Specifications

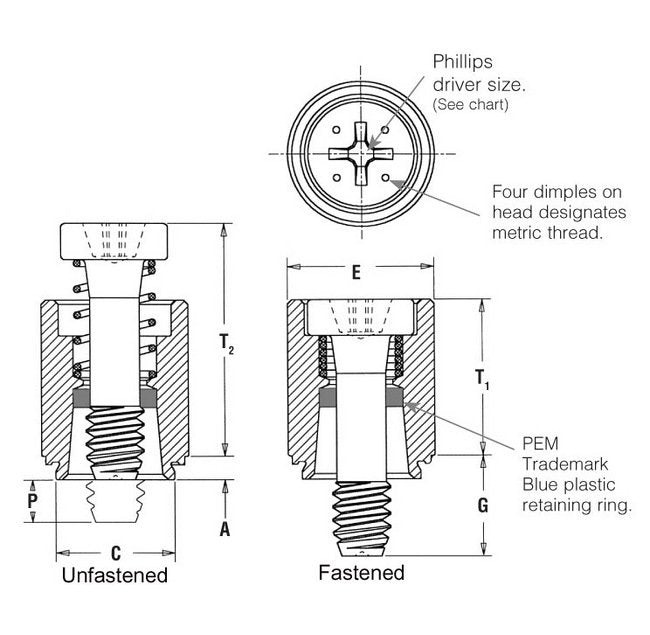

Specifications A Shank Max

.060 in

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications Cad View

Unfastened

Specifications C Max

.280 in

Specifications Driver Size

#2 Phillips

Specifications E 010

.344 in

Specifications Finish Retainer

Passivated and/or tested per ASTM A380

Specifications Finish Screw

Passivated and/or tested per ASTM A380

Specifications Finish Spring

Natural Finish

Specifications For Use In Sheet Hardness

HRB 70 or Less (Hardness Rockwell âBâ Scale) / HB 125 or Less (Hardness Brinell)

Specifications G 016

.375 in

Specifications Hole Size In Sheet 0003 0000

.281 in

Specifications Material Retainer

300 Series Stainless Steel

Specifications Material Screw

400 Series Stainless Steel

Specifications Material Spring

300 Series Stainless Steel

Specifications Min Dist Hole Cl To Edge

.28 in

Specifications Min Sheet Thickness

.060 in

Specifications Optional Finish

Retainer â BN â Black NitrideScrew â BN â Black nitride

Specifications P 025

.125 in

Specifications Screw Length Code

Specifications T1 Max

.38 in

Specifications T2 Nom

.540 in

Specifications Thread Code

632

Specifications Thread Size

.138-32 (#6;-32)

Specifications Thread Specification

ANSI B1.1, 2A

Specifications Type

PFC2P
