Spring-Loaded Captive Panel Screw - Unified Type PF7M

Name: Spring-Loaded Captive Panel Screw - Unified Type PF7M
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-623400
Price: 12.99 USD
Availability: OutOfStock

SKU:PEM-623400

Self-clinching Spring-Loaded Captive Panel Screw - Type PF7M, flush installation, high pushout resistance, no special hole preparation.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

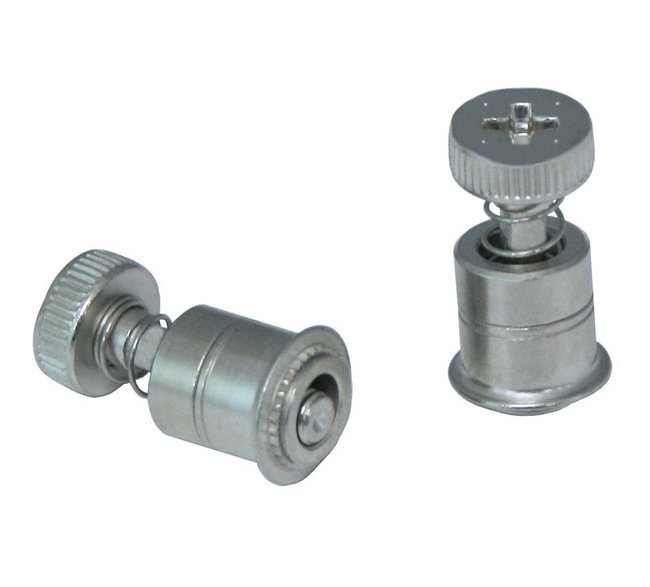

The Spring-Loaded Captive Panel Screw, Unified Type PF7M, features a self-clinching design for exceptional pushout resistance and flush installation on panel backs. With no special hole preparation required, this screw ensures secure fastening and reliability. It boasts specifications like a .112-40 thread size, heat-treated carbon steel screw, 300 series stainless steel spring, and ASME B1.1 compliance, making it ideal for various metal sheet applications.

Product Specifications

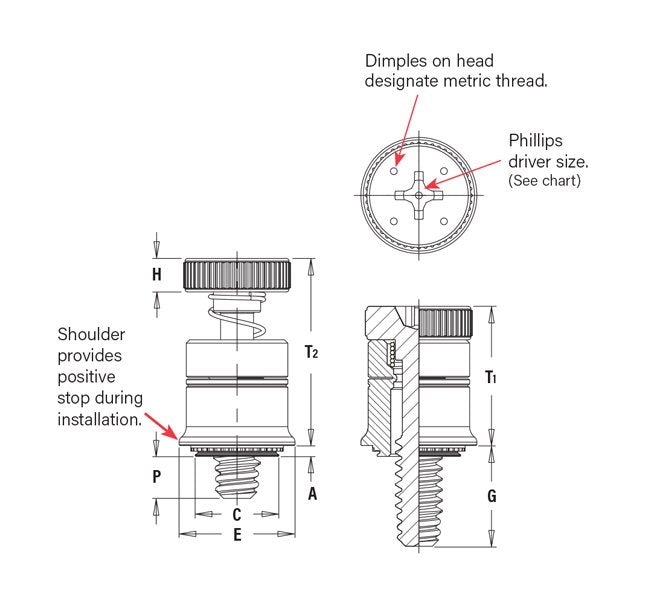

Specifications A Shank Max

.036 in

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications Cad View

Unfastened

Specifications C Max

.218 in

Specifications E 010

.310 in

Specifications Finish Retainer

Bright nickel over copper flash

Specifications Finish Screw

Bright nickel over copper flash

Specifications Finish Spring

Natural Finish

Specifications For Use In Sheet Hardness

HRB 60 or Less (Hardness Rockwell âBâ Scale) / HB 107 or Less (Hardness Brinell)

Specifications G 025

.210 in

Specifications Hole Size In Sheet 0003 0000

.219 in

Specifications H 010

.100 in

Specifications Material Retainer

Carbon Steel

Specifications Material Screw

Heat-Treated Carbon Steel

Specifications Material Spring

300 Series Stainless Steel

Specifications Min Dist Hole Cl To Edge

.28 in

Specifications Min Sheet Thickness

.036 in

Specifications P 025

.000 in

Specifications Screw Length Code

Specifications T1 Nom

.38 in

Specifications T2 Nom

.55 in

Specifications Thread Code

440

Specifications Thread Size

.112-40 (#4;-40)

Specifications Thread Specification

ASME B1.1, 2A

Specifications Type

PF7M
