Spring Loaded Cast Steel Globe Valve - PN 16

Name: Spring Loaded Cast Steel Globe Valve - PN 16
Brand: World Wide Metric, Inc.
SKU: VAL-7825e8
Price: 299.99 USD
Availability: OutOfStock

SKU:VAL-7825e8

Durable cast steel globe valve with spring loaded actuator for precise control in industrial applications.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Spring Loaded Cast Steel Globe Valve is a high-performance valve designed for overboard applications. Constructed with precision cast steel body and stainless steel components, it ensures durability and reliable operation. The spring actuator provides quick response and precise control. Compliant with DIN2501-PN16 standards, this valve is ideal for industrial environments requiring robust and efficient flow control.

Product Specifications

Specifications Actuators

Spring

Specifications Body Material

Cast Steel

Specifications Connection

Flanged Drilled

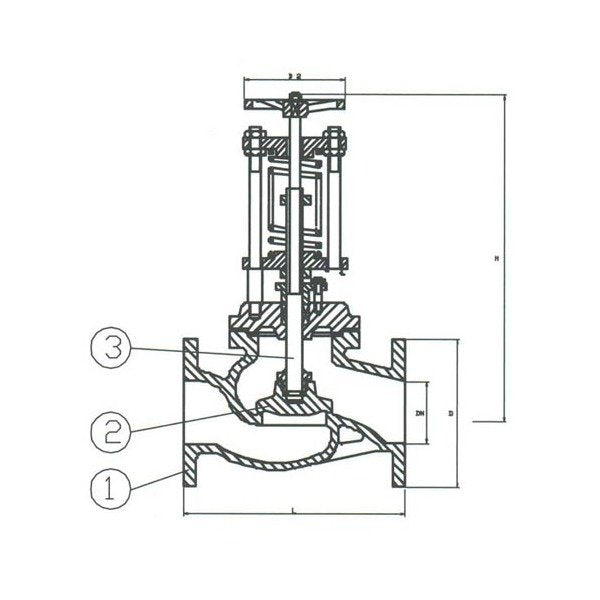

Specifications D

115 mm

Specifications D2

100 mm

Specifications Disc Material

Stainless Steel

Specifications H

335 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

160 mm

Specifications Seat Material

Brass

Specifications Size

025

Specifications Stem Material

Brass

Specifications Weight

7.0 kg

Spring Loaded Cast Steel Globe Valve - PN 16
