Spring-loaded Large Knob - Blue Cap - PEM C.A.P.S. - Metric
Spring-loaded Large Knob - Blue Cap - PEM C.A.P.S. - Metric
SKU:PEM-311011
Elevate security and aesthetics with the Spring-loaded Large Knob in vibrant Blue Cap, ideal for up to 0.92mm metal sheets. ANSI/ASME compliant for precision and durability.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Spring-loaded Large Knob - Blue Cap - PEM C.A.P.S. - Metric
$24.99
Quantity: 1
Claim Your Seller Account
Spring-loaded Large Knob - Blue Cap - PEM C.A.P.S. - Metric
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

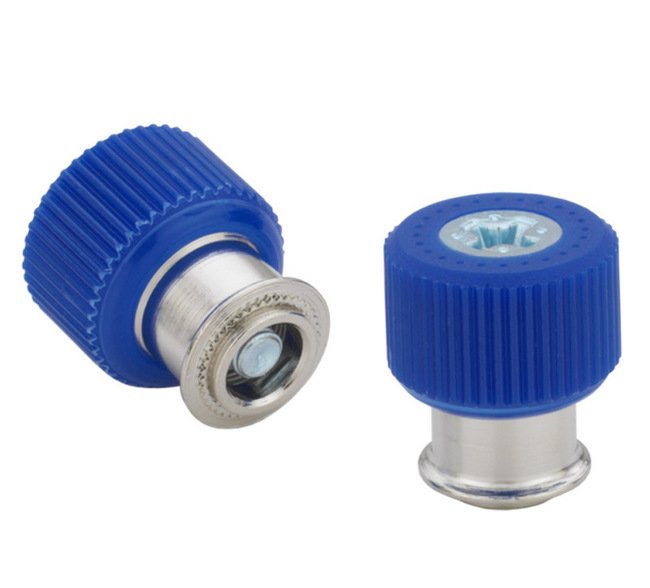

Enhance security and aesthetics with our Spring-loaded Large Knob featuring a blue Knurled Cap. This PEM C.A.P.S. fastener is designed with precision, offering a Thread Size x Pitch of M4 x 0.7, and complies with ANSI/ASME standards. Crafted from high-quality materials including PC/ABS and heat-treated carbon steel, it ensures durability and reliability. Ideal for metal sheets up to 0.92mm thickness. Stand out with this vibrant, functional fastening solution.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

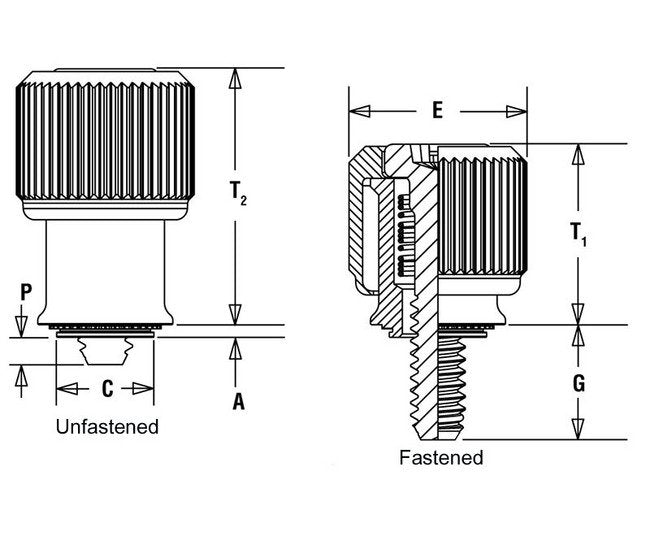

Specifications A Shank Max
0.92 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
7.9 mm
Specifications Driver Size
#2 Phillips
Specifications E 025
13.06 mm
Specifications Finish Retainer
Bright Nickel over Copper Flash per ASTM B689
Specifications Finish Screw
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)
Specifications G 064
5.84 mm
Specifications Hole Size In Sheet 008
7.92 mm
Specifications Knob Color
Blue
Specifications Material Knob
PC/ABS (UL 94V-0, halogen-free)
Specifications Material Retainer
Heat-Treated Carbon Steel
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
8.38 mm
Specifications Min Float
0.51 mm
Specifications Min Sheet Thickness
0.92 mm
Specifications P 064
0 mm
Specifications Screw Length Code
0
Specifications T1 Nom
11.43 mm
Specifications T2 Nom
16.26 mm
Specifications Thread Code
M4
Specifications Thread Size X Pitch
M4 x 0.7
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
Knurled Cap - PF11PM
