Spring-loaded Large Knob - PEM C.A.P.S. - Metric

Spring-loaded Large Knob - PEM C.A.P.S. - Metric

PEM-e46511

Enhance access panel security with the red Spring-loaded Large Knob by PEM, featuring ANSI/ASME thread specs and durable materials for metal sheets.

$12.99
$12.99
Sale

Initiate Order

Spring-loaded Large Knob - PEM C.A.P.S. - Metric

Spring-loaded Large Knob - PEM C.A.P.S. - Metric

$12.99

Quantity: 1

Claim Your Seller Account

Spring-loaded Large Knob - PEM C.A.P.S. - Metric

Spring-loaded Large Knob - PEM C.A.P.S. - Metric

$12.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Upgrade your access panels with the Spring-loaded Large Knob from PEM C.A.P.S. This high-quality knob features a red knurled cap, M5 x 0.8 thread size, and durable materials like heat-treated carbon steel and 300 series stainless steel. With ANSI/ASME thread specifications and finishes per ASTM standards, this knob ensures secure fastening for metal sheets while meeting HRB 80 hardness requirements. Trust in the reliability and precision of PennEngineering's PEM brand for your institutional needs.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

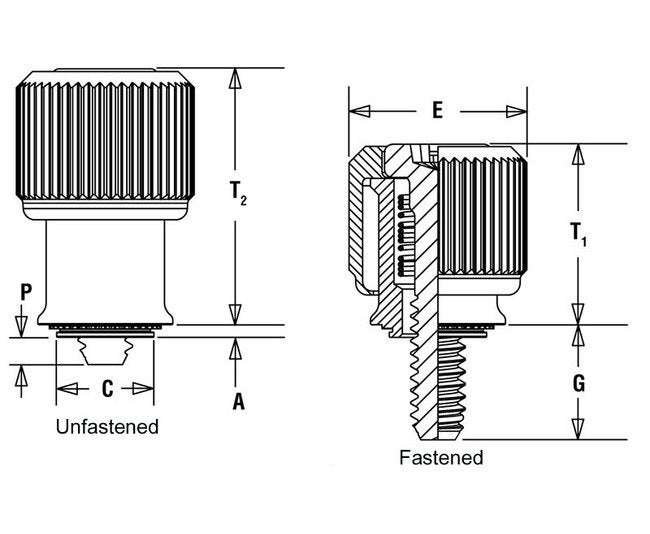

Specifications A Shank Max
0.92 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
7.9 mm
Specifications Driver Size
#2 Phillips
Specifications E 025
13.06 mm
Specifications Finish Retainer
Bright Nickel over Copper Flash per ASTM B689
Specifications Finish Screw
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 80 or Less (Hardness Rockwell “B” Scale) / HB 150 or Less (Hardness Brinell)
Specifications G 064
8.89 mm
Specifications Hole Size In Sheet 008
7.92 mm
Specifications Knob Color
Red
Specifications Material Knob
PC/ABS (UL 94V-0, halogen-free)
Specifications Material Retainer
Heat-Treated Carbon Steel
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
8.38 mm
Specifications Min Float
0.51 mm
Specifications Min Sheet Thickness
0.92 mm
Specifications P 064
3.05 mm
Specifications Screw Length Code
2
Specifications T1 Nom
11.43 mm
Specifications T2 Nom
16.26 mm
Specifications Thread Code
M5
Specifications Thread Size X Pitch
M5 x 0.8
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
Knurled Cap - PF11PM
