Spring-Loaded Large Knob PF11MW & PF12MW - Metric Thread
Spring-Loaded Large Knob PF11MW & PF12MW - Metric Thread
SKU:PEM-21653d
Versatile spring-loaded large knob for precise alignment and durability in metal sheet applications. ANSI/ASME B1.13M compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Spring-Loaded Large Knob PF11MW & PF12MW - Metric Thread
$29.99
Quantity: 1
Claim Your Seller Account
Spring-Loaded Large Knob PF11MW & PF12MW - Metric Thread
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

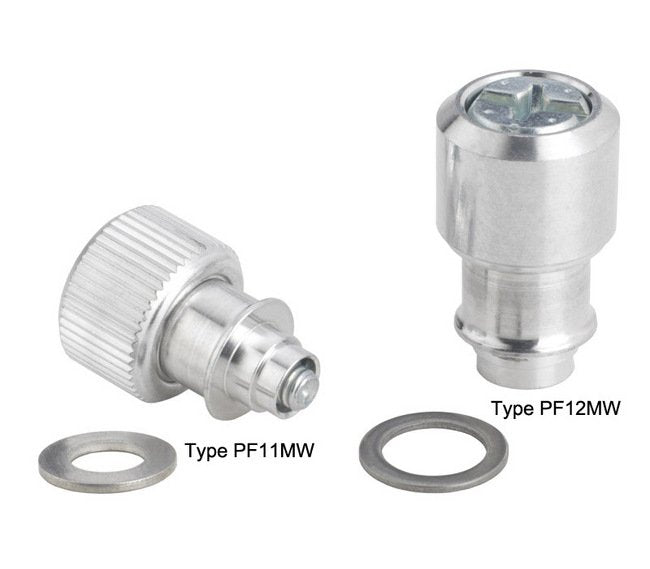

The Spring-Loaded Large Knob PF11MW & PF12MW is a versatile solution designed to compensate for mating hole misalignment and is compatible with various panel hardness levels. Featuring a knurled cap design and constructed with high-quality materials including aluminum, heat-treated carbon steel, and stainless steel components, this knob ensures durability and reliable performance. With ANSI/ASME B1.13M thread specifications and compliance with industry standards, this product is ideal for metal sheet applications requiring precision and resilience.
Product Specifications

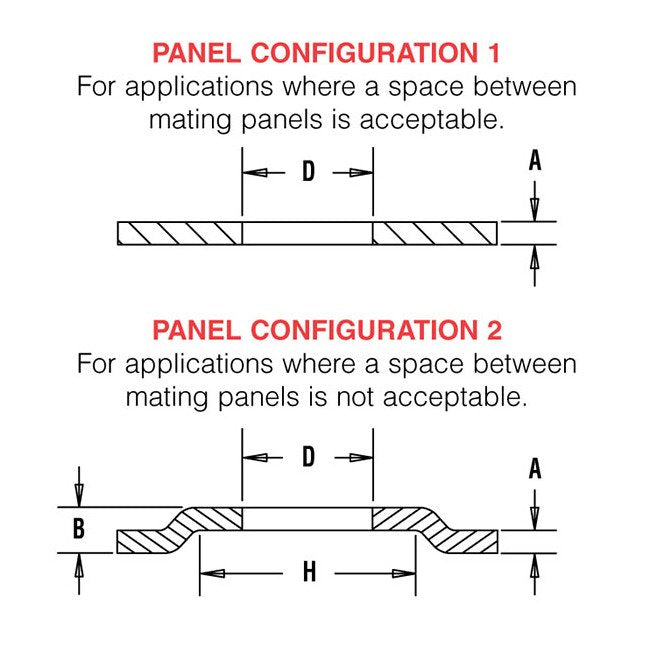

Specifications A Max Sheet Thickness
1.6 mm
Specifications B Min
2.92 mm

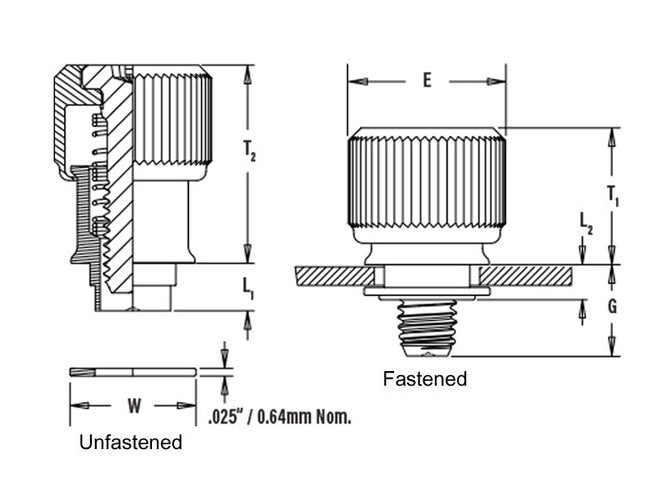

Specifications Cad Note
Mating washers for PF11MW / PF12MW panel fasteners are not shown in 3D drawings.
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications Driver Size
Slotted/#2; Phillips
Specifications D Hole Size In Sheet 008 003
7.19 mm
Specifications E 025
11.43 mm
Specifications Finish Knob
Natural Finish
Specifications Finish Retainer
Natural finish
Specifications Finish Screw
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Finish Spring
Natural Finish
Specifications G Nom
7.37 mm
Specifications H Min
10.49 mm
Specifications L1 Nom
3.78 mm
Specifications L2 Max
3.23 mm
Specifications Material Knob
Aluminum
Specifications Material Retainer
Aluminum
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Material Washer
300 Series Stainless Steel
Specifications Min Float
1.93 mm
Specifications Screw Length Code
1
Specifications Shank Code
1
Specifications T1 Nom
11.43 mm
Specifications T2 Nom
16.26 mm
Specifications Thread Code
M3.5
Specifications Thread Size X Pitch
M3.5 x 0.6
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
Knurled Cap - PF11MW
Specifications W Nom
8.74 mm
