Spring-Loaded Large Knob - PF11MW & PF12MW - Metric Thread M5x0.8
Spring-Loaded Large Knob - PF11MW & PF12MW - Metric Thread M5x0.8
SKU:PEM-ca66ec
Versatile Spring-Loaded Large Knob for precise panel fastening on metal sheets up to 1.6mm thick. ANSI/ASME thread specs and zinc-plated finish ensure reliability.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Spring-Loaded Large Knob - PF11MW & PF12MW - Metric Thread M5x0.8
$12.99
Quantity: 1
Claim Your Seller Account
Spring-Loaded Large Knob - PF11MW & PF12MW - Metric Thread M5x0.8
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

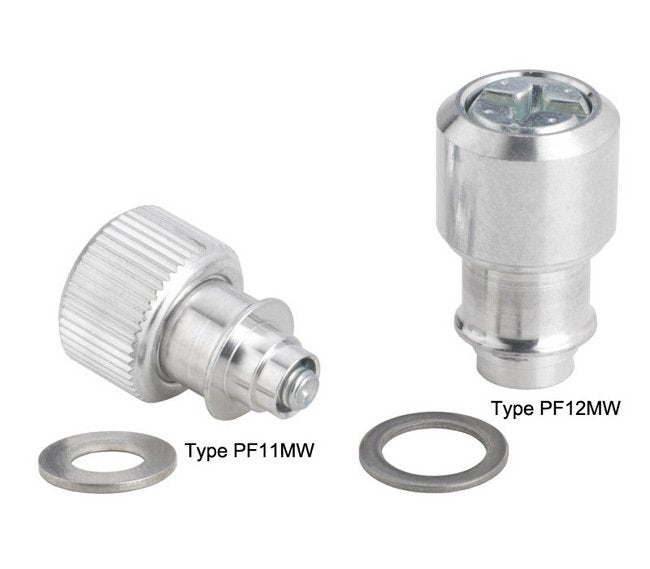

Enhance panel fastening with the Spring-Loaded Large Knob - Types PF11MW and PF12MW. Designed for M5 x 0.8 metric threads, featuring aluminum knob and retainer, heat-treated carbon steel screw, and 300 series stainless steel spring and washer. This knob compensates for hole misalignment, ensuring secure installation in metal sheets up to 1.6mm thick. With ANSI/ASME thread specifications, zinc-plated finish, and CAD compatibility from PennEngineering® (PEM®), it meets stringent procurement standards.
Product Specifications

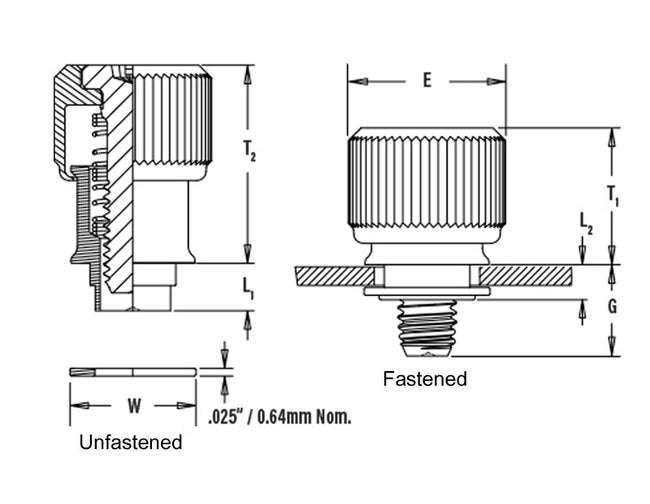

Specifications A Max Sheet Thickness
1.6 mm
Specifications B Min
3.07 mm
Specifications Cad Note
Mating washers for PF11MW / PF12MW panel fasteners are not shown in 3D drawings.
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications Driver Size
Slotted/#2; Phillips

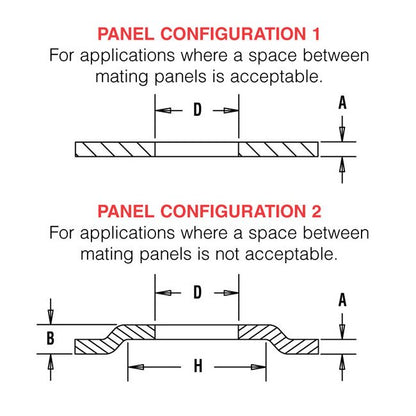

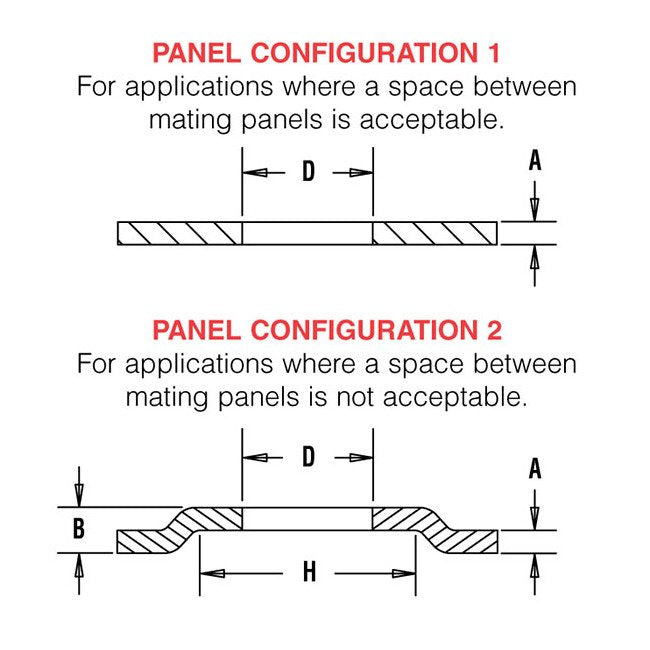

Specifications D Hole Size In Sheet 008 003
8.79 mm
Specifications E 025
13.06 mm
Specifications Finish Knob
Natural Finish
Specifications Finish Retainer
Natural finish
Specifications Finish Screw
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Finish Spring
Natural Finish
Specifications G Nom
7.37 mm
Specifications H Min
11.91 mm
Specifications L1 Nom
3.99 mm
Specifications L2 Max
3.56 mm
Specifications Material Knob
Aluminum
Specifications Material Retainer
Aluminum
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Material Washer
300 Series Stainless Steel
Specifications Min Float
1.93 mm
Specifications Screw Length Code
1
Specifications Shank Code
1
Specifications T1 Nom
11.43 mm
Specifications T2 Nom
16.26 mm
Specifications Thread Code
M5
Specifications Thread Size X Pitch
M5 x 0.8
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
Knurled Cap - PF11MW
Specifications W Nom
10.34 mm
