Spring-Loaded Large Knob (Types PF11MW & PF12MW) - Metric
Spring-Loaded Large Knob (Types PF11MW & PF12MW) - Metric
SKU:PEM-359d2b
High-quality Spring-Loaded Large Knob for precise panel installations, featuring durable materials and ANSI/ASME standard compliance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Spring-Loaded Large Knob (Types PF11MW & PF12MW) - Metric
$29.99
Quantity: 1
Claim Your Seller Account
Spring-Loaded Large Knob (Types PF11MW & PF12MW) - Metric
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

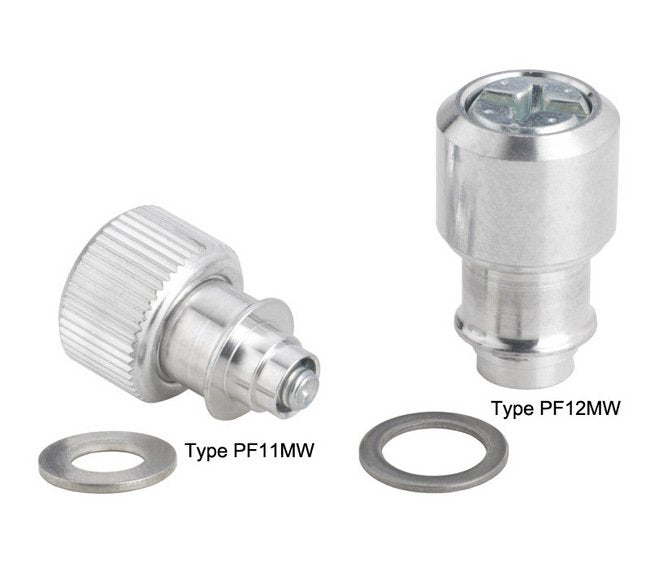

The Spring-Loaded Large Knob, available in Types PF11MW and PF12MW, is designed to compensate for mating hole misalignment and can be easily installed into panels of varying hardness. Featuring a Knurled Cap design and constructed with high-quality materials like Aluminum, Heat-Treated Carbon Steel, and 300 Series Stainless Steel, this knob ensures durability and reliability. With precise specifications meeting ANSI/ASME standards, this knob offers a secure fit for metal sheets up to 1.6mm thick, making it ideal for industrial applications.
Product Specifications
Specifications A Max Sheet Thickness
1.6 mm
Specifications B Min
3.07 mm

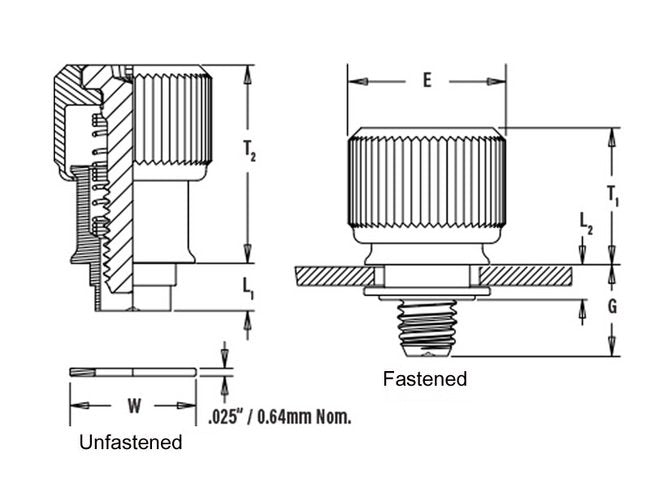

Specifications Cad Note
Mating washers for PF11MW / PF12MW panel fasteners are not shown in 3D drawings.
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications Driver Size
Slotted/#2; Phillips

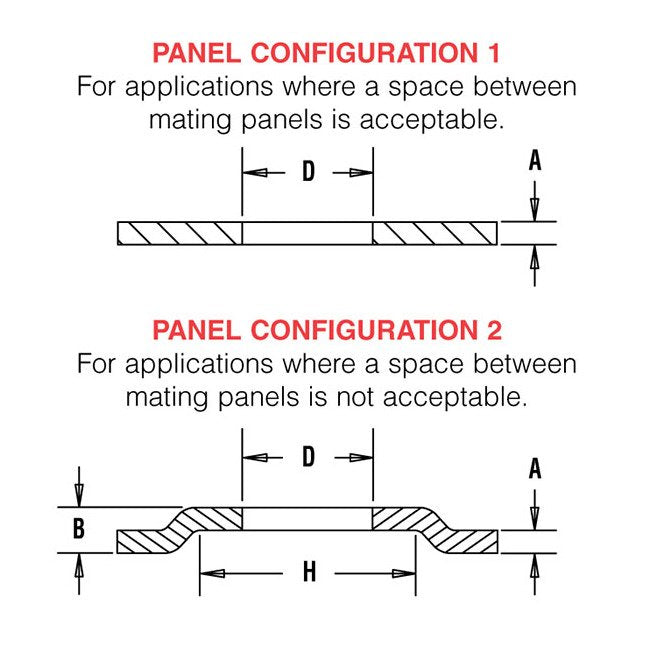

Specifications D Hole Size In Sheet 008 003
8.79 mm
Specifications E 025
13.06 mm
Specifications Finish Knob
Natural Finish
Specifications Finish Retainer
Natural finish
Specifications Finish Screw
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Finish Spring
Natural Finish
Specifications G Nom
8.89 mm
Specifications H Min
11.91 mm
Specifications L1 Nom
3.99 mm
Specifications L2 Max
3.56 mm
Specifications Material Knob
Aluminum
Specifications Material Retainer
Aluminum
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Material Washer
300 Series Stainless Steel
Specifications Min Float
1.93 mm
Specifications Screw Length Code
2
Specifications Shank Code
1
Specifications T1 Nom
11.43 mm
Specifications T2 Nom
16.26 mm
Specifications Thread Code
M4
Specifications Thread Size X Pitch
M4 x 0.7
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
Knurled Cap - PF11MW
Specifications W Nom
10.34 mm
