Precision Spring-loaded Locating Pin for seamless sheet assembly with quick lockout feature and durable materials.

$19.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

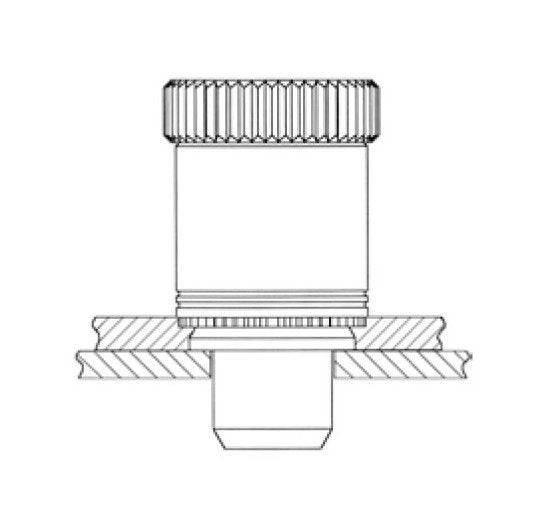

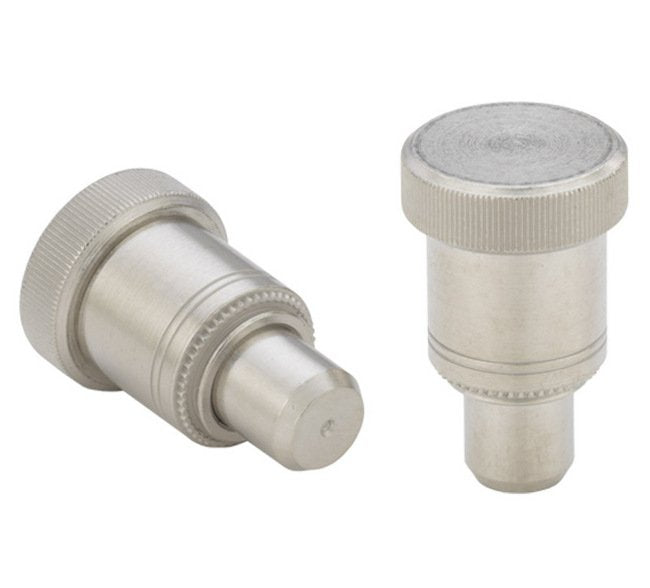

The Spring-loaded Locating Pin, Unified Type PSL2, PTL2, ensures a flush reverse side of the sheet when the plunger is retracted for seamless applications. Featuring a quick lockout capability to hold the plunger retracted and suitable for sheets of HRB 80 or less, this product offers precision and reliability. Made from high-quality materials like heat-treated carbon steel and 300 Series stainless steel, it meets rigorous industry standards and guarantees durability. With a bright nickel finish per ASTM B689 for the plunger and retainer, this pin is a must-have for various metal sheet assemblies.

Product Specifications

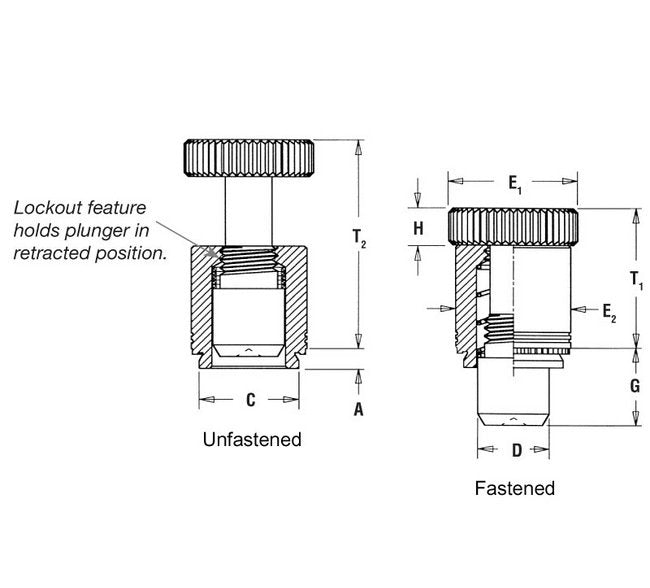

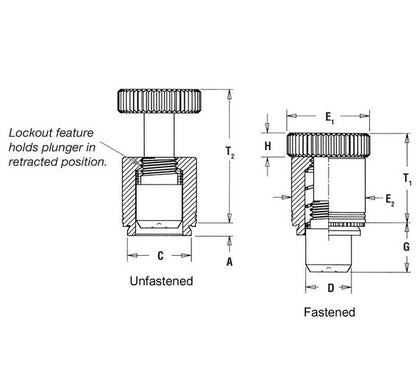

Specifications A Shank Max

.058 in

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications Cad View

Unfastened

Specifications C Max

.327 in

Specifications D 000 005

.250 in

Specifications E1 010

.500 in

Specifications E2 010

.406 in

Specifications Finish Plunger

Bright nickel over copper flash per ASTM B689

Specifications Finish Retainer

Bright Nickel over Copper Flash per ASTM B689

Specifications Finish Spring

Natural Finish

Specifications For Use In Sheet Hardness

HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)

Specifications G 010

.310 in

Specifications Hole Size In Sheet 003 000

.328 in

Specifications H 010

.170 in

Specifications Material Plunger

Heat-treated Carbon Steel

Specifications Material Retainer

Heat-Treated Carbon Steel

Specifications Material Spring

300 Series Stainless Steel

Specifications Min Dist Hole Cl To Edge

.34 in

Specifications Min Sheet Thickness

.060 in

Specifications Plunger Diameter Code

Specifications Plunger Length Code

Specifications T1 010

.595 in

Specifications T2 Nom

.895 in

Specifications Tr 005

.430 in

Specifications Type

PTL2
