Spring-loaded Locating Pin - Unified Types PSL2, PTL2
Spring-loaded Locating Pin - Unified Types PSL2, PTL2
SKU:PEM-c66720
Enhance precision and durability with our Spring-loaded Locating Pin, perfect for industrial applications. PSL2, PTL2 specifications. Bright nickel finish for corrosion resistance.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Spring-loaded Locating Pin - Unified Types PSL2, PTL2
$24.99
Quantity: 1
Claim Your Seller Account
Spring-loaded Locating Pin - Unified Types PSL2, PTL2
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

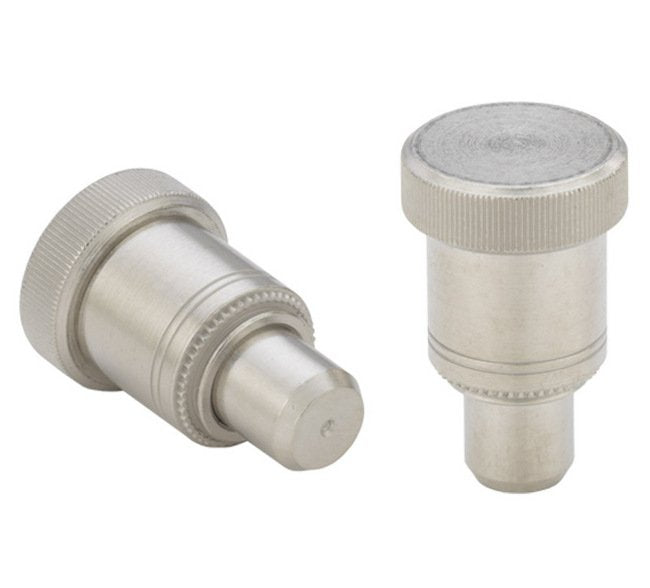

Upgrade your fastening solutions with our Spring-loaded Locating Pin, designed with PSL2 and PTL2 specifications for precise alignment and secure fit. Crafted from heat-treated carbon steel with stainless steel spring, this pin ensures durability and reliable performance. The bright nickel finish enhances corrosion resistance, making it suitable for sheets up to .060 inches thick. Perfect for industrial applications requiring precision and strength, this locating pin guarantees stable positioning without a lockout feature.
Product Specifications

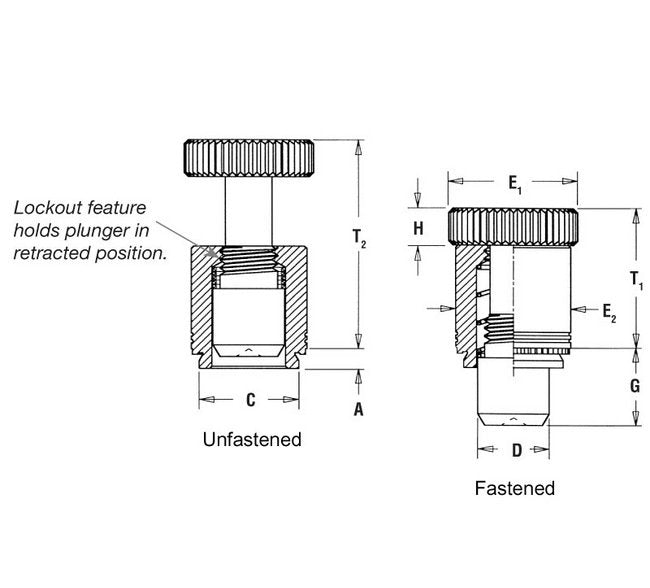

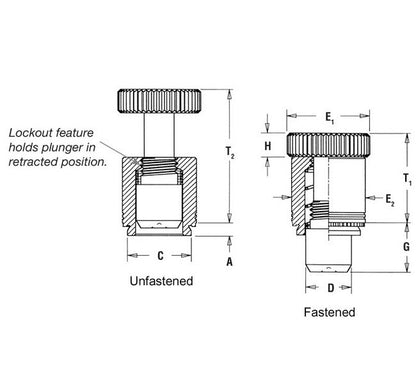

Specifications A Shank Max
.058 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.327 in
Specifications D 000 005
.250 in
Specifications E1 010
.500 in
Specifications E2 010
.406 in
Specifications Finish Plunger
Bright nickel over copper flash per ASTM B689
Specifications Finish Retainer
Bright Nickel over Copper Flash per ASTM B689
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)
Specifications G 010
.310 in
Specifications Hole Size In Sheet 003 000
.328 in
Specifications H 010
.170 in
Specifications Material Plunger
Heat-treated Carbon Steel
Specifications Material Retainer
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.34 in
Specifications Min Sheet Thickness
.060 in
Specifications Plunger Diameter Code
04
Specifications Plunger Length Code
4
Specifications T1 010
.510 in
Specifications T2 Nom
.780 in
Specifications Tr 005
.350 in
Specifications Type
PSL2
