Spring-loaded Metric Captive Panel Screw PFC2, PFS2

Spring-loaded Metric Captive Panel Screw PFC2, PFS2

PEM-ad8467

Versatile Spring-loaded Captive Panel Screw meeting UL 508 requirements, with various screw lengths and ANSI/ASME B1.13M thread standards.

$12.99
$12.99
Sale

Initiate Order

Spring-loaded Metric Captive Panel Screw PFC2, PFS2

Spring-loaded Metric Captive Panel Screw PFC2, PFS2

$12.99

Quantity: 1

Claim Your Seller Account

Spring-loaded Metric Captive Panel Screw PFC2, PFS2

Spring-loaded Metric Captive Panel Screw PFC2, PFS2

$12.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

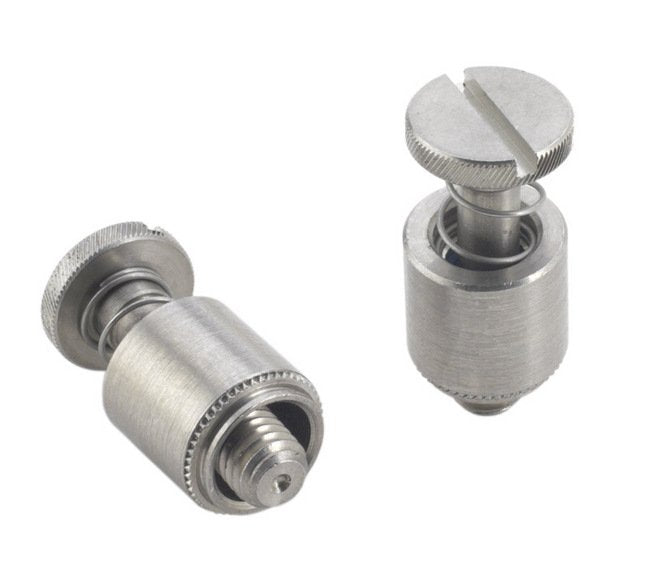

The Spring-loaded Metric Captive Panel Screw, available in steel or stainless steel, is designed to meet 'operator access area' requirements similar to UL 508. With tool or finger operation and various screw lengths, it offers versatility and ease of use for secure fastening applications. This screw specifically meets ANSI/ASME B1.13M thread specifications, crafted from 300 Series Stainless Steel, and finished as per ASTM A380 standards for reliability and durability.

Product Specifications

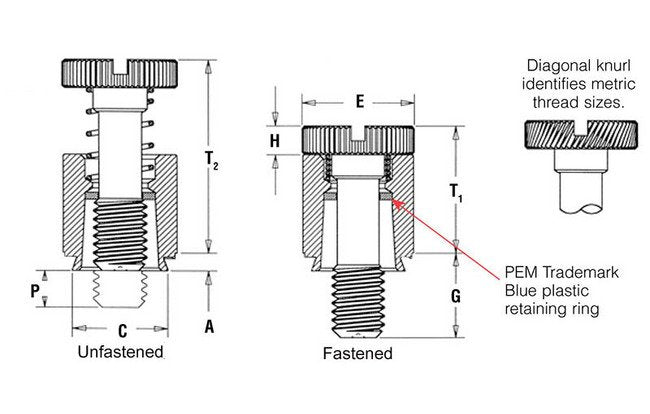

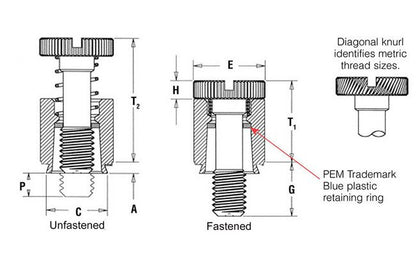

Specifications A Shank Max
1.53 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
6.71 mm
Specifications E 025
7.92 mm
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 70 or Less (Hardness Rockwell “B” Scale) / HB 125 or Less (Hardness Brinell)
Specifications G 04
9.50 mm
Specifications Hole Size In Sheet 008
6.73 mm
Specifications H 013
1.83 mm
Specifications Material Retainer
300 Series Stainless Steel
Specifications Material Screw
300 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
6.35 mm
Specifications Min Sheet Thickness
1.53 mm
Specifications P 064
3.20 mm
Specifications Screw Length Code
62
Specifications T1 Max
9.14 mm
Specifications T2 Nom
13.72 mm
Specifications Thread Code
M3
Specifications Thread Size X Pitch
M3 x 0.5
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
PFC2
