Spring-loaded Metric Captive Panel Screw PFC2, PFS2

Name: Spring-loaded Metric Captive Panel Screw PFC2, PFS2
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-f91cc5
Price: 12.99 USD
Availability: OutOfStock

SKU:PEM-f91cc5

Versatile spring-loaded metric captive panel screw meeting UL 508 requirements with ANSI/ASME B1.13M compliant specifications.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

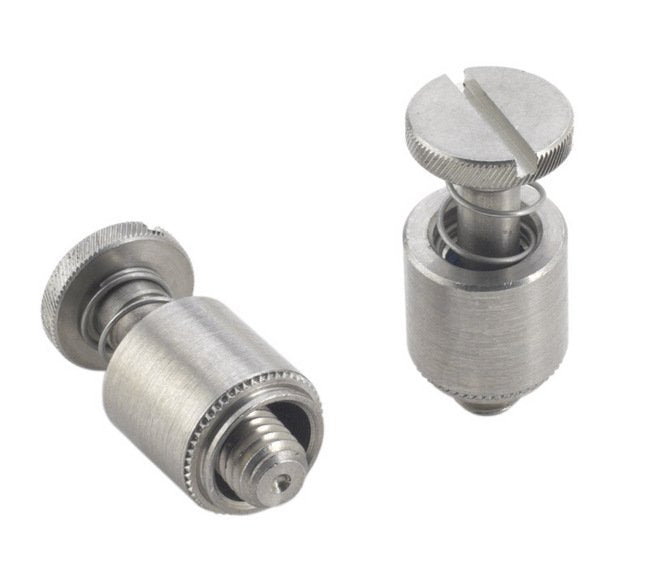

The Spring-loaded Metric Captive Panel Screw PFC2, PFS2 is a versatile fastening solution available in steel or stainless steel, designed to meet stringent 'operator access area' requirements similar to UL 508. With tool or finger operation and three screw length options, this screw ensures secure fastening in metal sheets and panels. Featuring specifications compliant with ANSI/ASME B1.13M standards, materials like heat-treated carbon steel and 300 series stainless steel, and finishes per ASTM B689, this screw is ideal for applications demanding precision and durability.

Product Specifications

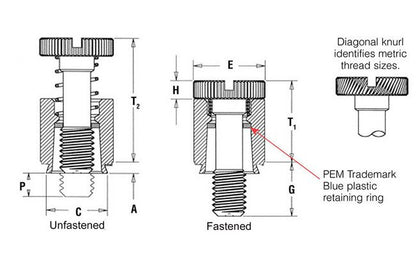

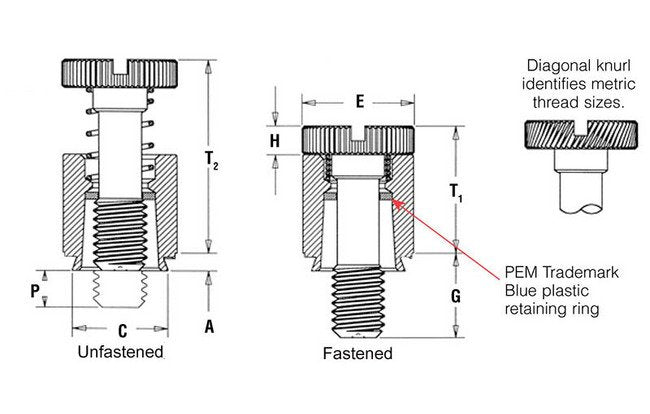

Specifications A Shank Max

1.53 mm

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications Cad View

Unfastened

Specifications C Max

6.71 mm

Specifications E 025

7.92 mm

Specifications Finish Retainer

Bright Nickel over Copper Flash per ASTM B689

Specifications Finish Screw

Bright nickel over copper flash per ASTM B689

Specifications Finish Spring

Natural Finish

Specifications For Use In Sheet Hardness

HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)

Specifications G 04

9.50 mm

Specifications Hole Size In Sheet 008

6.73 mm

Specifications H 013

1.83 mm

Specifications Material Retainer

Heat-Treated Carbon Steel

Specifications Material Screw

Carbon Steel

Specifications Material Spring

300 Series Stainless Steel

Specifications Min Dist Hole Cl To Edge

6.35 mm

Specifications Min Sheet Thickness

1.53 mm

Specifications P 064

3.20 mm

Specifications Screw Length Code

Specifications T1 Max

9.14 mm

Specifications T2 Nom

13.72 mm

Specifications Thread Code

Specifications Thread Size X Pitch

M3 x 0.5

Specifications Thread Specification

ANSI/ASME B1.13M, 6g

Specifications Type

PFS2
