Spring-loaded Metric Captive Panel Screws PFC2, PFS2

Name: Spring-loaded Metric Captive Panel Screws PFC2, PFS2
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-c3ce76
Price: 24.99 USD
Availability: OutOfStock

SKU:PEM-c3ce76

Durable Spring-loaded Captive Panel Screws, compliant with UL508, M6 x 1 thread, ANSI/ASME B1.13M, made of 300 Series Stainless Steel.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

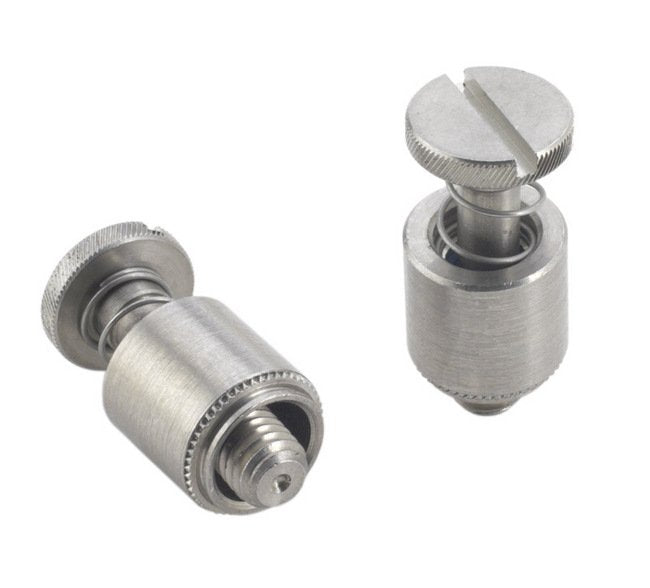

The Spring-loaded Metric Captive Panel Screws PFC2, PFS2 are available in steel or stainless steel, ensuring durability and reliability for a range of applications. Compliant with 'operator access area' requirements like UL 508, these screws offer tool or finger operation ease. With various screw lengths available, including M6 x 1 thread size, they meet ANSI/ASME B1.13M standards. Crafted from 300 Series Stainless Steel and finished as per ASTM A380, these screws are ideal for metal sheets with HRB 70 or less hardness. PennEngineeringÂ® (PEMÂ®) ensures precision engineering with an unfastened CAD view for seamless integration.

Product Specifications

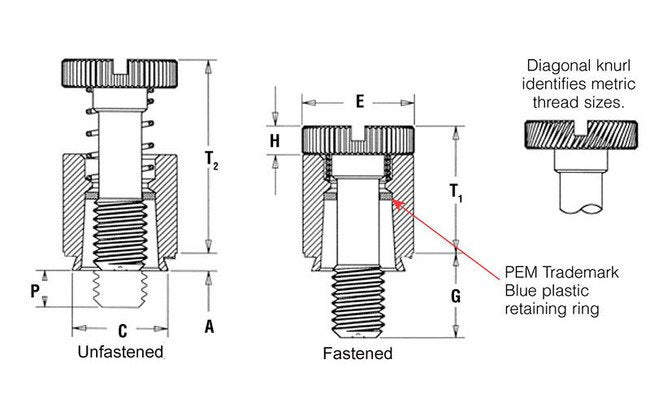

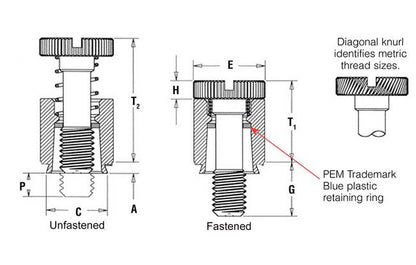

Specifications A Shank Max

1.53 mm

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications Cad View

Unfastened

Specifications C Max

10.47 mm

Specifications E 025

11.89 mm

Specifications Finish Retainer

Passivated and/or tested per ASTM A380

Specifications Finish Screw

Passivated and/or tested per ASTM A380

Specifications Finish Spring

Natural Finish

Specifications For Use In Sheet Hardness

HRB 70 or Less (Hardness Rockwell âBâ Scale) / HB 125 or Less (Hardness Brinell)

Specifications G 04

15.90 mm

Specifications Hole Size In Sheet 008

10.49 mm

Specifications H 013

2.46 mm

Specifications Material Retainer

300 Series Stainless Steel

Specifications Material Screw

300 Series Stainless Steel

Specifications Material Spring

300 Series Stainless Steel

Specifications Min Dist Hole Cl To Edge

9.65 mm

Specifications Min Sheet Thickness

1.53 mm

Specifications Optional Finish

Retainer â BN â Black NitrideScrew â BN â Black nitride

Specifications P 064

6.40 mm

Specifications Screw Length Code

Specifications T1 Max

14.73 mm

Specifications T2 Nom

22.35 mm

Specifications Thread Code

Specifications Thread Size X Pitch

M6 x 1

Specifications Thread Specification

ANSI/ASME B1.13M, 6g

Specifications Type

PFC2
