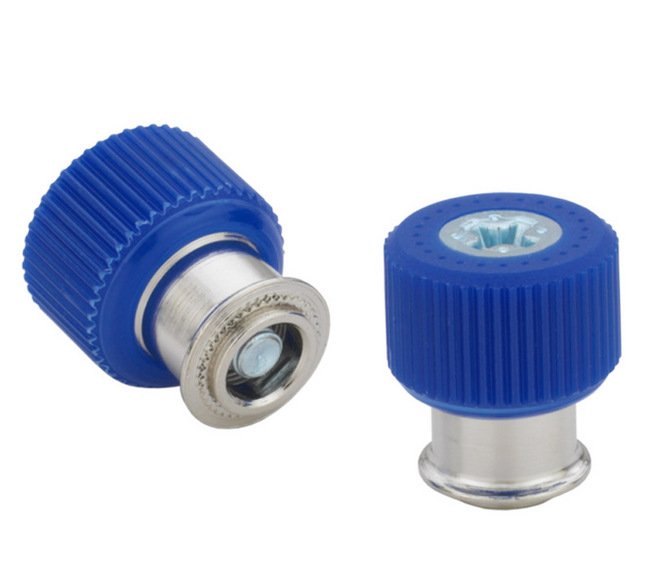

Spring-loaded Metric Large Knob - PEM C.A.P.S. - Blue
Spring-loaded Metric Large Knob - PEM C.A.P.S. - Blue
SKU:PEM-7d3f8c
Enhance access security with the durable Spring-loaded Metric Large Knob by PEM C.A.P.S. Knurled cap screw with M4 x 0.7 thread size, blue knob, and high-quality materials.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Spring-loaded Metric Large Knob - PEM C.A.P.S. - Blue
$12.99
Quantity: 1
Claim Your Seller Account
Spring-loaded Metric Large Knob - PEM C.A.P.S. - Blue
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your panel security with the Spring-loaded Metric Large Knob by PEM C.A.P.S. This knurled cap screw boasts a thread size of M4 x 0.7, ensuring a secure fit. Its durable materials, including PC/ABS knob, heat-treated carbon steel retainer and screw, and 300 series stainless steel spring, guarantee long-lasting performance. With finishes like bright nickel over copper and zinc plating, it meets high industry standards. Ideal for metal sheets with low hardness, it adheres to ANSI/ASME B1.13M thread specifications and is a staple for secure panel access in various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications A Shank Max
0.92 mm
Specifications Cad Supplier
PennEngineering® (PEM®)

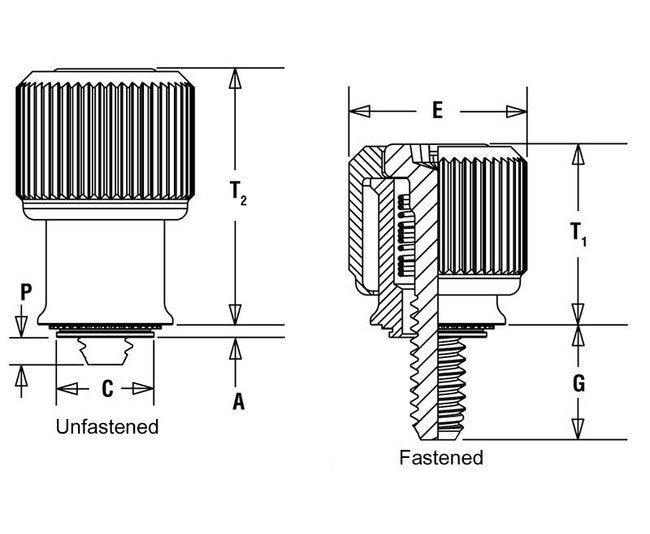

Specifications Cad View
Unfastened
Specifications C Max
7.9 mm
Specifications Driver Size
#2 Phillips
Specifications E 025
13.06 mm
Specifications Finish Retainer
Bright Nickel over Copper Flash per ASTM B689
Specifications Finish Screw
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)
Specifications G 064
7.37 mm
Specifications Hole Size In Sheet 008
7.92 mm
Specifications Knob Color
Blue
Specifications Material Knob
PC/ABS (UL 94V-0, halogen-free)
Specifications Material Retainer
Heat-Treated Carbon Steel
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
8.38 mm
Specifications Min Float
0.51 mm
Specifications Min Sheet Thickness
0.92 mm
Specifications P 064
1.52 mm
Specifications Screw Length Code
1
Specifications T1 Nom
11.43 mm
Specifications T2 Nom
16.26 mm
Specifications Thread Code
M4
Specifications Thread Size X Pitch
M4 x 0.7
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
Knurled Cap - PF11PM
