Spring-loaded Metric Screw Head Types PFC2, PFS2
Spring-loaded Metric Screw Head Types PFC2, PFS2
SKU:PEM-ba2f85
High-quality Spring-loaded Metric Screw Head meeting UL 508 standards for secure and accessible fastening.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Spring-loaded Metric Screw Head Types PFC2, PFS2
$25.99
Quantity: 1
Claim Your Seller Account
Spring-loaded Metric Screw Head Types PFC2, PFS2
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

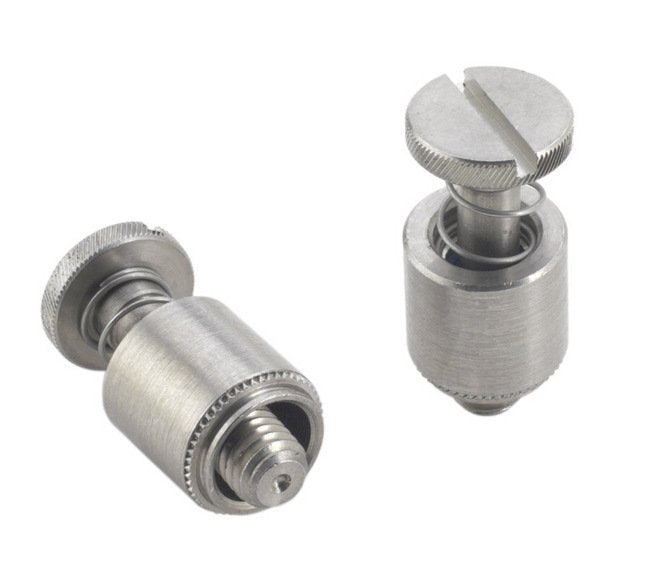

The Spring-loaded Metric Screw Head, with Types PFC2 and PFS2, is designed for steel or stainless steel applications, meeting stringent operator access area standards akin to UL 508. Featuring tool or finger operation and available in various sizes and screw lengths, this screw ensures secure fastening and easy access for maintenance or repairs.
Product Specifications

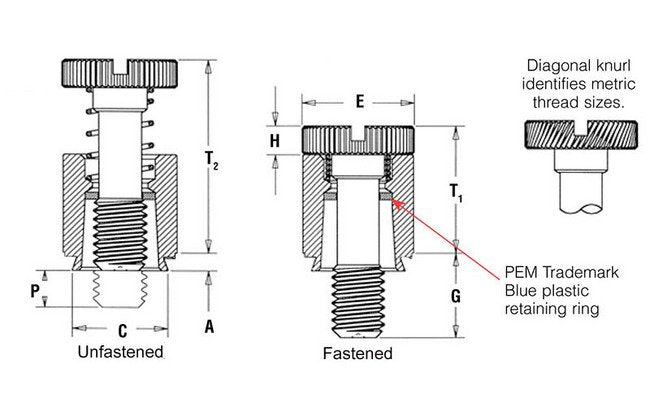

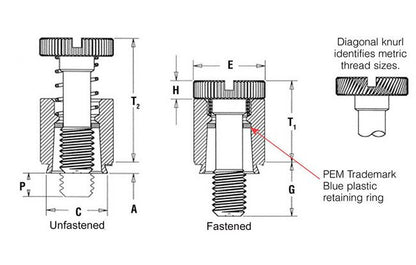

Specifications A Shank Max
1.53 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
7.9 mm
Specifications E 025
9.53 mm
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 70 or Less (Hardness Rockwell âBâ Scale) / HB 125 or Less (Hardness Brinell)
Specifications G 04
11.10 mm
Specifications Hole Size In Sheet 008
7.92 mm
Specifications H 013
2.08 mm
Specifications Material Retainer
300 Series Stainless Steel
Specifications Material Screw
300 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
7.87 mm
Specifications Min Sheet Thickness
1.53 mm
Specifications Optional Finish
Retainer â BN â Black NitrideScrew â BN â Black nitride
Specifications P 064
3.20 mm
Specifications Screw Length Code
72
Specifications T1 Max
11.43 mm
Specifications T2 Nom
17.53 mm
Specifications Thread Code
M4
Specifications Thread Size X Pitch
M4 x 0.7
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
PFC2
