Spring-Loaded Self-Clinching Captive Panel Screw - Unified Type PF7M
Spring-Loaded Self-Clinching Captive Panel Screw - Unified Type PF7M
SKU:PEM-632304
Securely fasten metal panels with the Spring-Loaded Self-Clinching Captive Panel Screw - Unified Type PF7M. High pushout resistance, flush installation without special hole preparation, and ASME standard compliance.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Spring-Loaded Self-Clinching Captive Panel Screw - Unified Type PF7M
$24.99
Quantity: 1
Claim Your Seller Account
Spring-Loaded Self-Clinching Captive Panel Screw - Unified Type PF7M
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

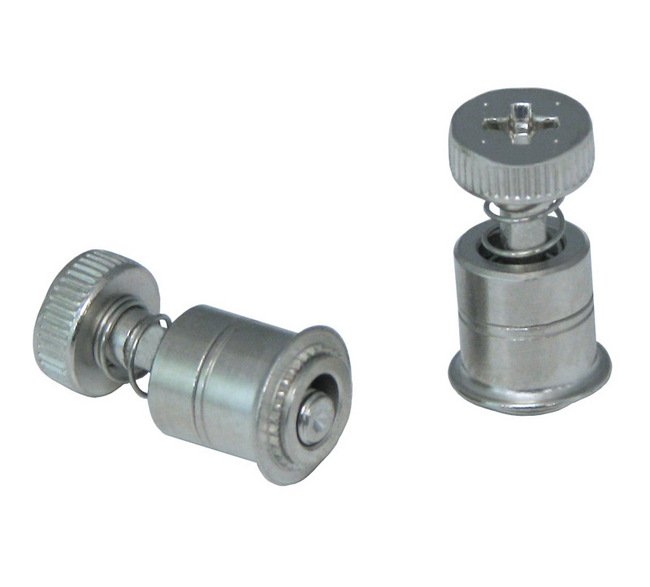

The Spring-Loaded Self-Clinching Captive Panel Screw, Unified Type PF7M, offers secure fastening with high pushout resistance. Designed to install flush on the panel's back side, it eliminates the need for special hole preparation. With precise specifications meeting ASME standards, including thread size, material composition, and finishes, this screw ensures reliable performance in metal sheets. Ideal for applications requiring durability and easy installation.

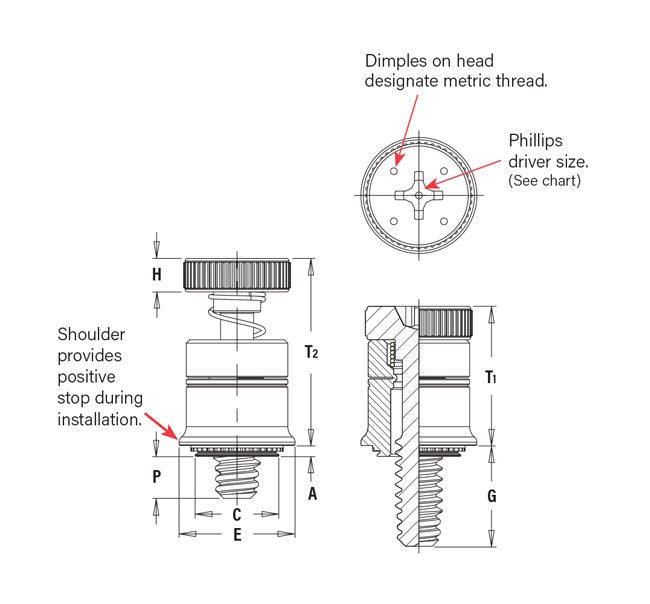

Product Specifications
Specifications A Shank Max
.036 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.249 in
Specifications E 010
.342 in
Specifications Finish Retainer
Bright nickel over copper flash
Specifications Finish Screw
Bright nickel over copper flash
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 60 or Less (Hardness Rockwell âBâ Scale) / HB 107 or Less (Hardness Brinell)
Specifications G 025
.240 in
Specifications Hole Size In Sheet 0003 0000
.250 in
Specifications H 010
.100 in
Specifications Material Retainer
Carbon Steel
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.290 in
Specifications Min Sheet Thickness
.036 in
Specifications P 025
.000 in
Specifications Screw Length Code
0
Specifications T1 Nom
.410 in
Specifications T2 Nom
.610 in
Specifications Thread Code
632
Specifications Thread Size
.138-32 (#6;-32)
Specifications Thread Specification
ASME B1.1, 2A
Specifications Type
PF7M
