SPUV Series 1/4 Inch SUPERLOK Inlet Purge Valve
SPUV Series 1/4 Inch SUPERLOK Inlet Purge Valve
SKU:SPU-efa8e4
Precision-engineered 1/4 Inch SUPERLOK Inlet Purge Valve for manual bleed, vent, or drain applications. Compact design for easy installation.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
SPUV Series 1/4 Inch SUPERLOK Inlet Purge Valve
$49.99
Quantity: 1
Claim Your Seller Account
SPUV Series 1/4 Inch SUPERLOK Inlet Purge Valve
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SPUV Series 1/4 Inch SUPERLOK Inlet Purge Valve is a precision-engineered valve designed for manual bleed, vent, or drain applications. Featuring a compact design for easy installation, this purge valve ensures leaktight closure with a quarter turn, providing reliable operation in a wide temperature range from 65 to 600°F. With a pressure rating of 4000 psig, this valve is constructed from high-quality 316 stainless steel and brass materials, offering durability and corrosion resistance. The cap is crimped to the valve body to prevent accidental disassembly, while the variety of end connections, including SUPERLOK tube fittings, NPT, and ISO threads, provide versatility for different system setups.
Product Specifications
Application Application
SUPERLOK purge valves are manual bleed, vent, or drain valves. One-quarter turn with a wrench from finger-tight obtains leaktight closure on first makeup. Snugging with a wrench ensures closure to the rated pressure with subsequent makeups.
Caution Caution
When installing a SUPERLOK purge valve, position the vent hole to direct system fluid away from operating personnel. The vent hole rotates with the cap. changing the direction of discharge as the cap is turned. Always open purge valves slowly. These valves contain no packing, so some fluid seepage will occur when the valves are opened. operating personnel must protect themselves from exposure to system fluids.
Features Features
Compact for convenient installation.Vent hole is bled excessive liquid or gas from system lines.Cap is crimped to valve body to prevent accidental disassembly.Variety of end connections : SUPERLOK® tube fittings, NPT and ISO threads.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Data Pressure Rating At 100 Degree Fahrenheit F 38 Deg
4000 psig | 275 bar
Technical Data Temperature Rating
65 to 600 ºF | -54 to 315 ºC
Technical Specs Body Material
316 Stainless Steel | Brass

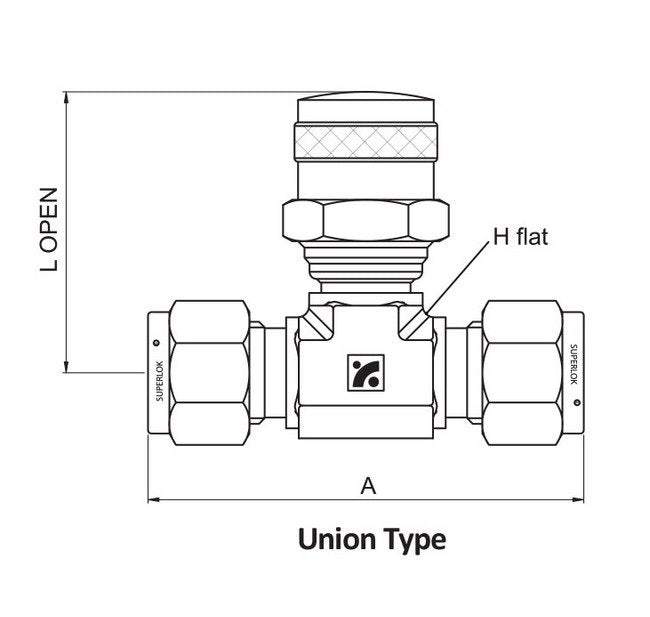

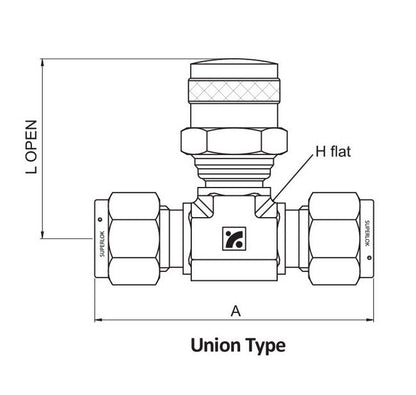

Technical Specs Dimension A
2.26 in | 57.5 mm
Technical Specs Dimension H
0.63 in | 15.9 mm
Technical Specs Dimension L
1.49 in | 38.0 mm
Technical Specs Inlet End Connections
1/4 in. SUPERLOK®
Technical Specs Pattern Designator
Union Type
Technical Specs Tube Outside Diameter
1/4 in | 6 mm
