SPWCI Series 1" Tube Male Pipe Weld Connector Fitting
SPWCI Series 1" Tube Male Pipe Weld Connector Fitting
SKU:SPW-09b791
High-quality SPWCI Series 1" Tube Male Pipe Weld Connector Fitting for secure and efficient tube-to-pipe connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
SPWCI Series 1" Tube Male Pipe Weld Connector Fitting
$24.99
Quantity: 1
Claim Your Seller Account
SPWCI Series 1" Tube Male Pipe Weld Connector Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

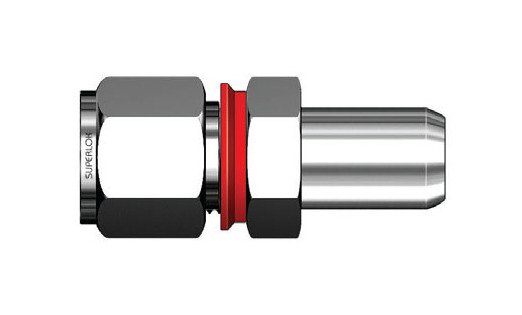

The SPWCI Series 1" Tube Male Pipe Weld Connector Fitting is designed to connect fractional tubes to pipes efficiently and securely. Crafted from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this fitting ensures durability and reliability in various applications. Featuring innovative i-Fitting® components such as a built-in gap gauge for perfect compression, this fitting enhances installer safety, productivity, and cost-effectiveness. With dimensions meeting industry standards and a patented design by BMT, this connector fitting is ideal for valve connections in high-pressure and chemical environments.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

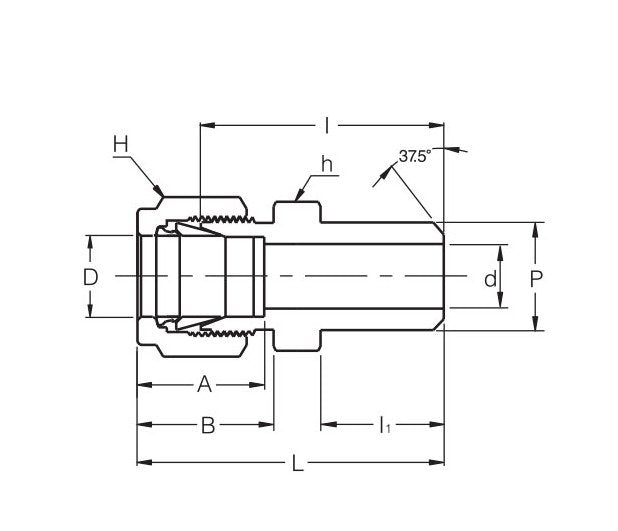

Technical Specs Connection Type
Male
Technical Specs Dimension A
31.24 mm
Technical Specs Dimension B
26.41 mm
Technical Specs Dimension I
50.03 mm
Technical Specs Dimension I1
23.87 mm
Technical Specs Dimension L
62.23 mm
Technical Specs Male Pipe Outside Diameter
33.40 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
22.35 mm
Technical Specs Nominal Male Pipe Size P
1 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
1 in
Technical Specs Width Across Flat H
1-1/2 in
