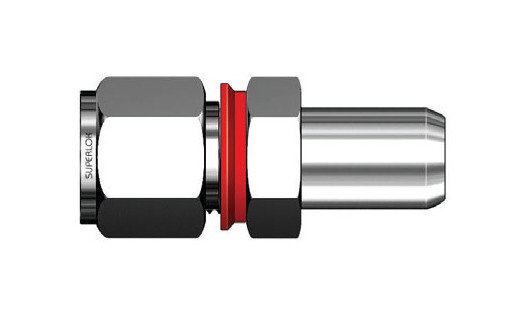

SPWCI Series 3/8" Tube OD Male Pipe Weld Connector Fitting

Name: SPWCI Series 3/8" Tube OD Male Pipe Weld Connector Fitting
Brand: Superlok-Mako Products LLC
SKU: SPW-a094f3
Price: 27.99 USD
Availability: OutOfStock

SKU:SPW-a094f3

Enhance installations with the SPWCI 3/8" Tube OD Male Pipe Weld Fitting, designed for precision and safety.

$27.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SPWCI Series 3/8" Tube OD Male Pipe Weld Connector Fitting is designed to connect fractional tubes to pipes with precise engineering. Crafted from high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, this fitting ensures durability and reliability in various applications. Featuring i-Fitting® components for enhanced safety and productivity, this industry-leading design includes a built-in gap gauge for perfect compression, making it a go-to choice for high-pressure and chemical environments. Improve your installation efficiency and reduce costs with this innovative and compliant male pipe weld connector fitting.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

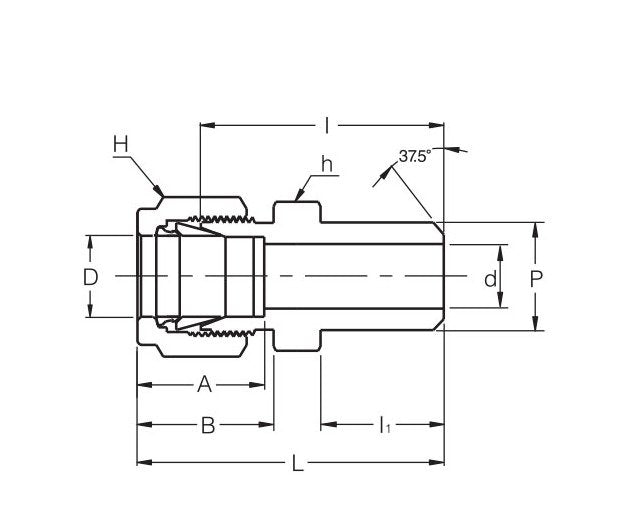

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

Technical Specs Connection Type

Male

Technical Specs Dimension A

16.76 mm

Technical Specs Dimension B

19.30 mm

Technical Specs Dimension I

32.51 mm

Technical Specs Dimension I1

14.22 mm

Technical Specs Dimension L

39.87 mm

Technical Specs Male Pipe Outside Diameter

13.70 mm

Technical Specs Material

Technical Specs Minimum Dimension D

7.11 mm

Technical Specs Nominal Male Pipe Size P

1/4 mm

Technical Specs Standard Size

1/4 to 1 in

Technical Specs Tube Outside Diameter D

3/8 in

Technical Specs Width Across Flat H

11/16 in
