SQC Series 1/2" FNPT Quick Connector Fitting
SQC Series 1/2" FNPT Quick Connector Fitting
SKU:SQC-01db9d
Premium 1/2" FNPT Quick Connector Fitting for efficient and tool-free line connections. Valved options available for optimal performance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
SQC Series 1/2" FNPT Quick Connector Fitting
$49.99
Quantity: 1
Claim Your Seller Account
SQC Series 1/2" FNPT Quick Connector Fitting
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SQC Series 1/2 Inch Female National Pipe Thread Quick Connector Fitting is a premium instrumentation solution designed for seamless connectivity. With a flow coefficient of 3.1 Cv, it ensures efficient flow rates while maintaining a coupled pressure rating of 750 psig at 70°F. Crafted from high-quality 316 Stainless Steel and Brass, this fitting guarantees durability and optimal performance. Its simple push-pull mechanism allows easy line connections without any tools, offering both valved and unvalved options to suit varied applications. Ideal for government and institutional buyers requiring reliable and compliant instrumentation fittings.
Product Specifications
Features Features
Simple push-pull action to connect and disconnect lines-no tools required.Plug and body are available valved or unvalved. Valves automatically open when connected and shut off when disconnected to minimize the loss of liquids or gases.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Coupled Pressure Rating At 400 Degree Fahrenheit
250 psig | 17.2 bar
Technical Specs Coupled Pressure Rating At 70 Degree Fahrenheit
750 psig | 51.6 bar

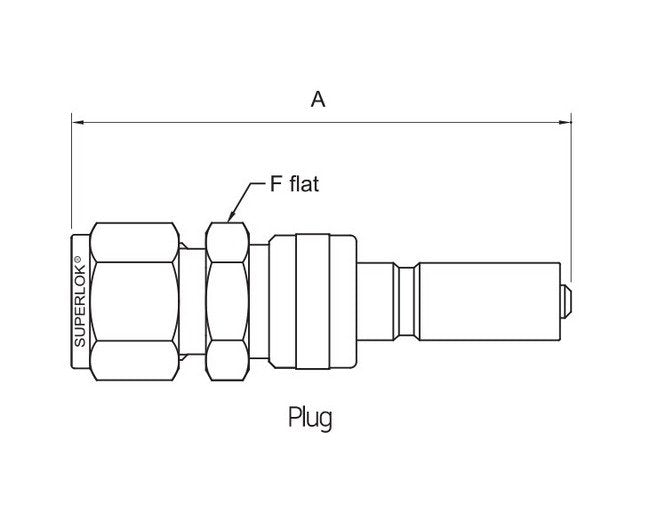

Technical Specs Dimension A
76.7 mm
Technical Specs Dimension F
27.0 mm
Technical Specs End Connections
1/2 in. Female National Pipe Thread (FNPT)
Technical Specs Flow Coefficients Cv
3.1
Technical Specs Insertion Depth
1.48 in | 37.6 mm
Technical Specs Maximum Flow Rate Water At 70 Degree Fahrenheit
37 L/min | 10 gpm
Technical Specs Plug Type
Single Shutoff Plug
Technical Specs Type
Plug
