SQC Series 3/8 Inch MNPT Quick Connector Fitting

Name: SQC Series 3/8 Inch MNPT Quick Connector Fitting
Brand: Superlok-Mako Products LLC
SKU: SQC-912b50
Price: 29.99 USD
Availability: OutOfStock

SKU:SQC-912b50

Effortlessly connect lines with the SQC Series 3/8 Inch MNPT Quick Connector Fitting. Valved option for minimal fluid/gas loss.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SQC Series 3/8 Inch MNPT Quick Connector Fitting is designed for easy, tool-free connection and disconnection of lines. With a flow coefficient of 1.6 Cv, this fitting ensures a coupled pressure rating of 1500 psig at 70°F, making it ideal for high-pressure applications. Constructed from durable 316 stainless steel or brass, it offers reliability and longevity. The valved option minimizes the loss of liquids or gases, meeting stringent industry standards.

Product Specifications

Features Features

Simple push-pull action to connect and disconnect lines-no tools required.Plug and body are available valved or unvalved. Valves automatically open when connected and shut off when disconnected to minimize the loss of liquids or gases.

Note Note

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.

Technical Specs Body Material

316 Stainless Steel | Brass

Technical Specs Coupled Pressure Rating At 400 Degree Fahrenheit

250 psig | 17.2 bar

Technical Specs Coupled Pressure Rating At 70 Degree Fahrenheit

1500 psig | 103 bar

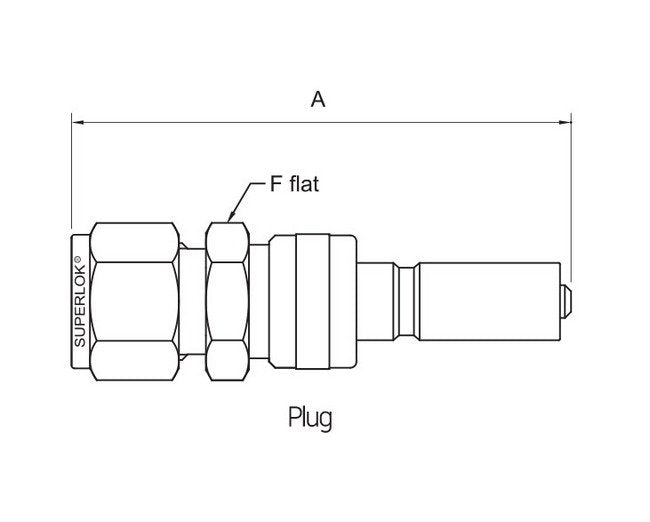

Technical Specs Dimension A

62.7 mm

Technical Specs Dimension F

19.1 mm

Technical Specs End Connections

3/8 in. Male National Pipe Thread (MNPT)

Technical Specs Flow Coefficients Cv

1.6

Technical Specs Insertion Depth

1.18 in | 30.0 mm

Technical Specs Maximum Flow Rate Water At 70 Degree Fahrenheit

22 L/min | 6 gpm

Technical Specs Plug Type

Single Shutoff Plug

Technical Specs Type

Plug
