The SQC Series 3/8 Inch SUPERLOK End Connections Quick Connector is a high-performance instrumentation fitting designed for precision and reliability. With a Coupled Pressure Rating of 1500 psig at 70°F and a maximum flow rate of 22 L/min, this fitting ensures efficient fluid control. Its 316 Stainless Steel body material and valved option guarantee durability and ease of use. The simple push-pull action facilitates quick line connections without the need for tools, making it ideal for both consumer and institutional applications.
Product Specifications
Features Features
Simple push-pull action to connect and disconnect lines-no tools required.Plug and body are available valved or unvalved. Valves automatically open when connected and shut off when disconnected to minimize the loss of liquids or gases.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Coupled Pressure Rating At 400 Degree Fahrenheit
250 psig | 17.2 bar
Technical Specs Coupled Pressure Rating At 70 Degree Fahrenheit
1500 psig | 103 bar

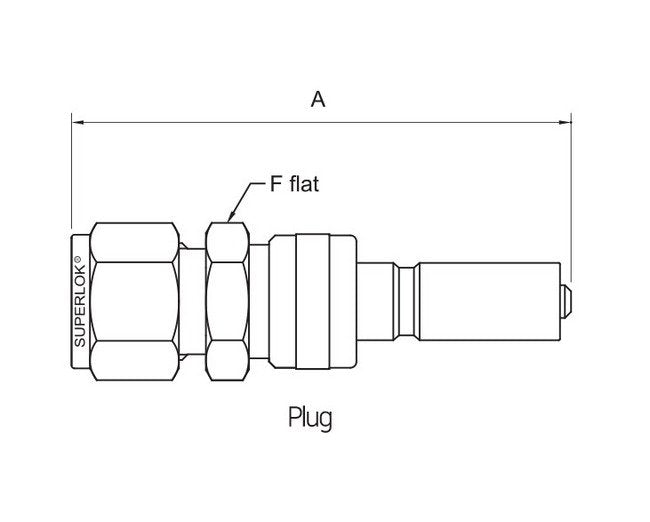

Technical Specs Dimension A
67.1 mm
Technical Specs Dimension F
19.1 mm
Technical Specs End Connections
3/8 in. SUPERLOK®
Technical Specs Flow Coefficients Cv
1.5
Technical Specs Insertion Depth
1.18 in | 30.0 mm
Technical Specs Maximum Flow Rate Water At 70 Degree Fahrenheit
22 L/min | 6 gpm
Technical Specs Plug Type
Single Shutoff Plug
Technical Specs Type
Plug
