SQC Series 3/8-Inch Superlok End Connections Quick Connector Fitting
SQC Series 3/8-Inch Superlok End Connections Quick Connector Fitting
SKU:SQC-591814
Premium 3/8-Inch Quick Connector Fitting for precise instrumentation applications. Easy push-pull design, high pressure ratings, and corrosion-resistant materials for reliable performance.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SQC Series 3/8-Inch Superlok End Connections Quick Connector Fitting
$89.99
Quantity: 1
Claim Your Seller Account
SQC Series 3/8-Inch Superlok End Connections Quick Connector Fitting
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SQC Series 3/8-Inch Superlok End Connections Quick Connector Fitting is a top-of-the-line plug type fitting designed for industrial instrumentation applications. With a flow coefficient of 1.5, it offers a coupled pressure rating of 1500 psig at 70°F, ensuring reliable performance. The 316 stainless steel or brass body material provides durability and corrosion resistance. Notably, this fitting features a simple push-pull action for quick and tool-free connection and disconnection, minimizing fluid or gas loss. Ideal for diverse environments, it meets the stringent standards of federal procurement and industry-specific certifications.
Product Specifications
Features Features
Simple push-pull action to connect and disconnect lines-no tools required.Plug and body are available valved or unvalved. Valves automatically open when connected and shut off when disconnected to minimize the loss of liquids or gases.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Coupled Pressure Rating At 400 Degree Fahrenheit
250 psig | 17.2 bar
Technical Specs Coupled Pressure Rating At 70 Degree Fahrenheit
1500 psig | 103 bar

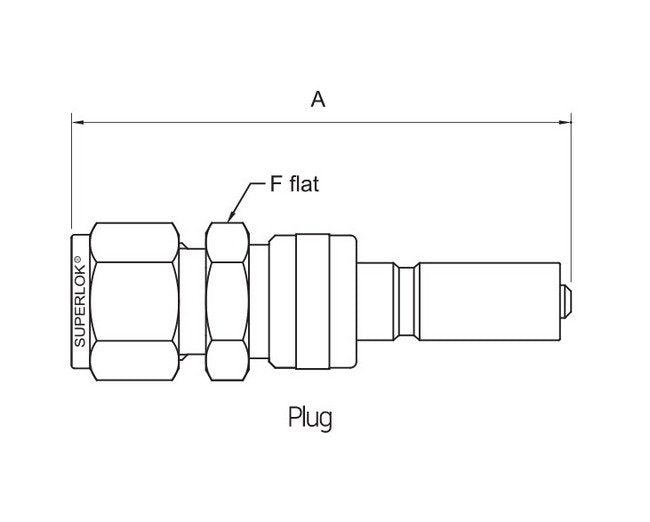

Technical Specs Dimension F
19.1 mm
Technical Specs End Connections
3/8 in. SUPERLOK®
Technical Specs Flow Coefficients Cv
1.5
Technical Specs Insertion Depth
1.30 in | 33.0 mm
Technical Specs Maximum Flow Rate Water At 70 Degree Fahrenheit
22 L/min | 6 gpm
Technical Specs Note For Spillage
Spillage is the amount of system fluid that escapes when a quick-connect is uncoupled (double shut off only)
Technical Specs Plug Type
Double Shutoff Plug
Technical Specs Spillage
1.0 cm³
Technical Specs Type
Plug
