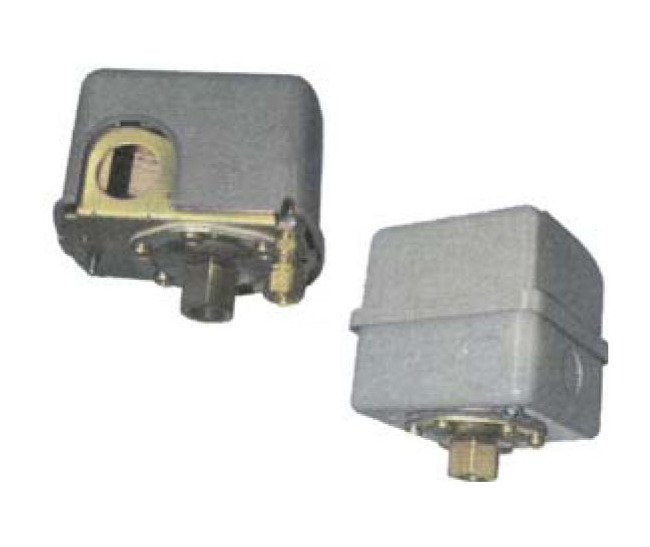

Square D 30 psig Non Adjustable Differential Pressure Pressure Switch

Name: Square D 30 psig Non Adjustable Differential Pressure Pressure Switch
Brand: Marcuse & Son, Inc.
SKU: SQU-1d4854
Price: 49.99 USD
Availability: OutOfStock

SKU:SQU-1d4854

Reliable Square D 30 psig Non Adjustable Differential Pressure Pressure Switch for precise air compressor control.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Ensure reliable air compressor control with the Square D 30 psig Non Adjustable Differential Pressure Pressure Switch. This switch is designed for precision, featuring a cut out pressure range of 70 to 150 psi and controllable pressure range from 0 to 200 psi. With a factory set pressure of 90 psi when on and 125 psi when off, this switch offers efficient operation. It is equipped with a 2-way valve, NEMA1 size enclosure, and UL listing for safety. Ideal for institutional use, this Square D pressure switch is a dependable choice for air compressor applications.

Product Specifications

Factory Set Pressure Factory Set Pressure When Off

125 psi

Factory Set Pressure Factory Set Pressure When On

90 psi

Power Rating 3 Phase Power Rating At 115 V

1-1/2 hp

Power Rating 3 Phase Power Rating At 230 V

2 hp

Power Rating Single Phase Power Rating At 115 V

1 hp

Power Rating Single Phase Power Rating At 230 V

1-1/2 hp

Power Rating Voltage

115 V | 230 V

Specifications 2 Way Valve

Yes

Specifications Controllable Pressure Range

0 to 200 psi

Specifications Cut Out Pressure Range

70 to 150 psi

Specifications Non Adjustable Differential Pressure

30 psig

Specifications Phase

1 | 3

Specifications Shipping Weight

1.2 Pound

Square D 30 psig Non Adjustable Differential Pressure Pressure Switch
