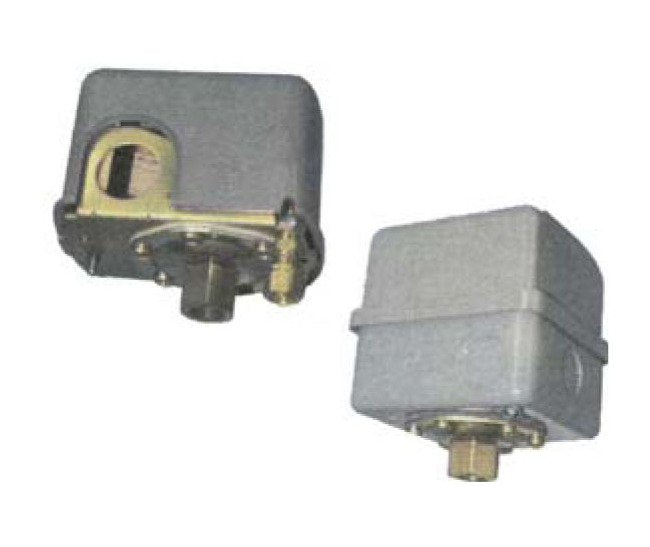

Square D 30 psig Non Adjustable Differential Pressure Switch
Square D 30 psig Non Adjustable Differential Pressure Switch
SKU:SQU-09bc84
Ensure precise air compressor control with the Square D 30 psig Non Adjustable Pressure Switch. UL-listed.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Square D 30 psig Non Adjustable Differential Pressure Switch
$89.99
Quantity: 1
Claim Your Seller Account
Square D 30 psig Non Adjustable Differential Pressure Switch
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Square D 30 psig Non Adjustable Differential Pressure Switch is a vital component in air compressor controls, offering a cut-out pressure range of 100 to 200 psi. With a factory-set pressure when on at 145 psi and off at 175 psi, this 2 pole type switch ensures precise control with its controllable pressure range of 0 to 200 psi. It features a lower female 1/4" NPT connection, NEMA1 size enclosures with 1/2" conduit openings, and meets UL listing standards. Ideal for both consumer and institutional buyers seeking reliable performance.
Product Specifications
Factory Set Pressure Factory Set Pressure When Off
175 psi
Factory Set Pressure Factory Set Pressure When On
145 psi
Power Rating 3 Phase Power Rating At 115 V
1-1/2 hp
Power Rating 3 Phase Power Rating At 230 V
2 hp
Power Rating Single Phase Power Rating At 115 V
1 hp
Power Rating Single Phase Power Rating At 230 V
1-1/2 hp
Power Rating Voltage
115 V | 230 V
Specifications 2 Way Valve
Yes
Specifications Controllable Pressure Range
0 to 200 psi
Specifications Cut Out Pressure Range
100 to 200 psi
Specifications Non Adjustable Differential Pressure
30 psig
Specifications Phase
1 | 3
Specifications Shipping Weight
1.2 Pound
