Square D 30 psig Non-Adjustable Differential Pressure Switch
Square D 30 psig Non-Adjustable Differential Pressure Switch
SKU:SQU-f8e73d
Square D 30 psig Pressure Switch for precise air compressor control. UL listed, high-power ratings, dual voltage options.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Square D 30 psig Non-Adjustable Differential Pressure Switch
$69.99
Quantity: 1
Claim Your Seller Account
Square D 30 psig Non-Adjustable Differential Pressure Switch
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

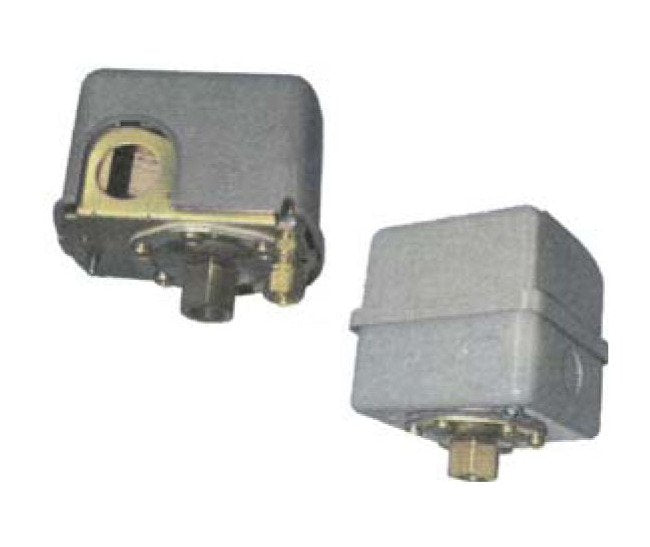

The Square D 30 psig Non-Adjustable Differential Pressure Switch is a reliable solution for air compressor controls, with a cut-out pressure range of 70 to 150 psi and a controllable pressure range of 0 to 200 psi. Featuring a 1/2" conduit openings NEMA1 size enclosure with ample wiring space, this switch ensures positive quick make and break contact action. It is UL listed and individually boxed for convenience. With factory set pressure of 90 psi when on and 125 psi when off, this switch offers dual voltage options and high power ratings, making it suitable for various industrial applications.
Product Specifications
Factory Set Pressure Factory Set Pressure When Off
125 psi
Factory Set Pressure Factory Set Pressure When On
90 psi
Power Rating 3 Phase Power Rating At 115 V
1-1/2 hp
Power Rating 3 Phase Power Rating At 230 V
2 hp
Power Rating Single Phase Power Rating At 115 V
1 hp
Power Rating Single Phase Power Rating At 230 V
1-1/2 hp
Power Rating Voltage
115 V | 230 V
Specifications 2 Way Valve
No
Specifications Controllable Pressure Range
0 to 200 psi
Specifications Cut Out Pressure Range
70 to 150 psi
Specifications Non Adjustable Differential Pressure
30 psig
Specifications Phase
1 | 3
Specifications Shipping Weight
1.0 Pound
