Square Gear Ratchet Wrench - Model 101 (13mm)
Square Gear Ratchet Wrench - Model 101 (13mm)
SKU:SER-5920d8
Durable Model 101 Ratchet Wrench with 13mm square gear opening, perfect for industrial tasks.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Square Gear Ratchet Wrench - Model 101 (13mm)
$29.99
Quantity: 1
Claim Your Seller Account
Square Gear Ratchet Wrench - Model 101 (13mm)
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

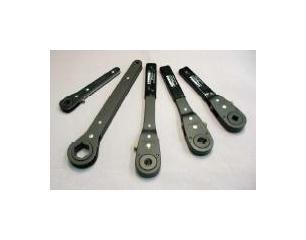

The Model 101 Ratchet Wrench from the Series 100 line offers precision and durability for a wide range of fastening tasks. Featuring a 13mm square gear opening with 16 teeth, this wrench ensures a secure grip and smooth operation. The adjustable handle with a comfortable vinyl grip provides excellent control, while the slim profile gears deliver exceptional performance. Ideal for industrial and institutional use, this wrench is designed to meet strict standards and deliver reliable results.
Product Specifications

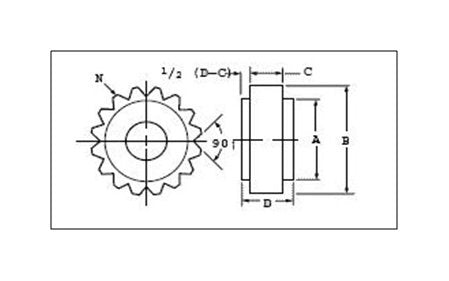

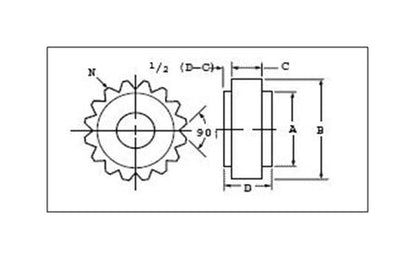

Specifications Gear Dimension A
1.058 in | 26.9 mm
Specifications Gear Dimension B
1.365 in | 34.7 mm
Specifications Gear Dimension C
.245 in | 6.2 mm
Specifications Gear Dimension D
.623 in | 15.8 mm
Specifications Gear Opening Shape
Square
Specifications Gear Opening Size
13 mm
Specifications Gear Part Number
M9213
Specifications Handle Part Number
82901
Specifications Model
101
Specifications Number Of Teeth
16

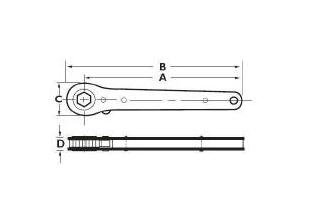

Specifications Overall Length B
7 13/16 in | 198 mm
Specifications Series
100
Specifications Socket Head Diameter C
1 9/16 in | 40 mm
Specifications Socket Length A
7 in | 180 mm
Specifications Thickness D
19/32 in | 15 mm
Specifications Weight
3/4 lb | 0.34 kg
