Square Gear Ratchet Wrench - Model 22 (10mm)
Square Gear Ratchet Wrench - Model 22 (10mm)
SKU:SER-7a5705
Heavy-duty Model 22 Square Gear Ratchet Wrench with 10mm opening. US Federal Spec GGG-W-653 compliant. Durable & precise for industrial needs.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Square Gear Ratchet Wrench - Model 22 (10mm)
$39.99
Quantity: 1
Claim Your Seller Account
Square Gear Ratchet Wrench - Model 22 (10mm)
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Model 22 Square Gear Ratchet Wrench from the Series 20 lineup is a heavy-duty tool crafted from cast malleable iron, ensuring durability for even the toughest applications. With a 10mm square gear opening designed for precision, this wrench features a bolt-through design with a remote reversing function controlled at the handle's end for safety and convenience. Compliant with US Federal Specification GGG-W-653, Type I, Class 2 standards, this wrench also offers custom gear shapes and sizes upon request, making it a versatile choice for industrial and institutional use.
Product Specifications

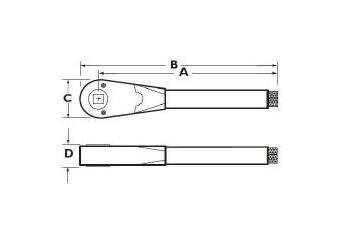

Specifications Dimension B
11 1/2 in | 292 mm
Specifications Dimension C
2 in | 50 mm
Specifications Dimension D
1 in | 25 mm

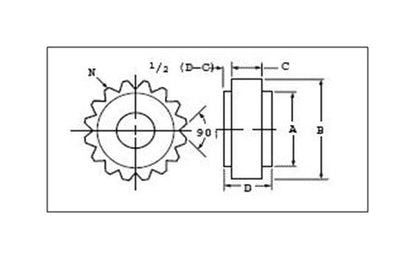

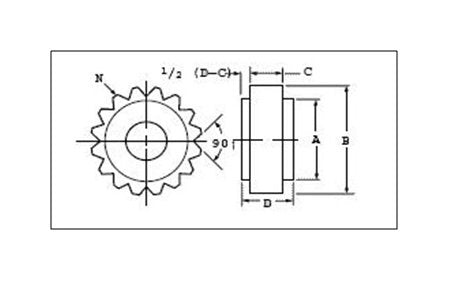

Specifications Gear Dimension A
1.120 in | 28.4 mm
Specifications Gear Dimension B
1.365 in | 34.7 mm
Specifications Gear Dimension C
.650 in | 16.5 mm
Specifications Gear Dimension D
1.028 in | 26.1 mm
Specifications Gear Opening Shape
Square
Specifications Gear Opening Size
10 mm
Specifications Gear Part Number
M1610
Specifications Handle Nominal Length A
10 1/2 in | 266 mm
Specifications Handle Part Number
22901
Specifications Material
Cast Malleable Iron
Specifications Model
22
Specifications Number Of Teeth
16
Specifications Series
20
Specifications Standards
US Federal Specification GGG-W-653, Type I, Class 2
Specifications Weight
2 lb | 0.91 kg
