Square Lock Stainless Steel Stripwound Hose

Name: Square Lock Stainless Steel Stripwound Hose
Brand: Anamet Electrical, Inc.
SKU: IND-7d30e1
Price: 399.99 USD
Availability: OutOfStock

SKU:IND-7d30e1

Premium stainless steel stripwound hose with high crush resistance. RoHS and WEEE compliant. Ideal for high-temperature applications in various industries.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

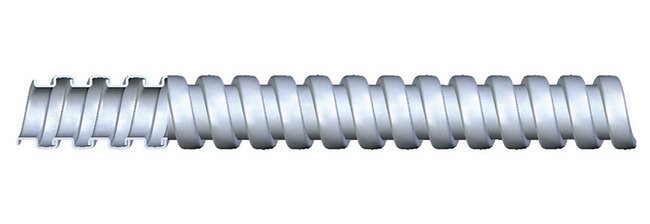

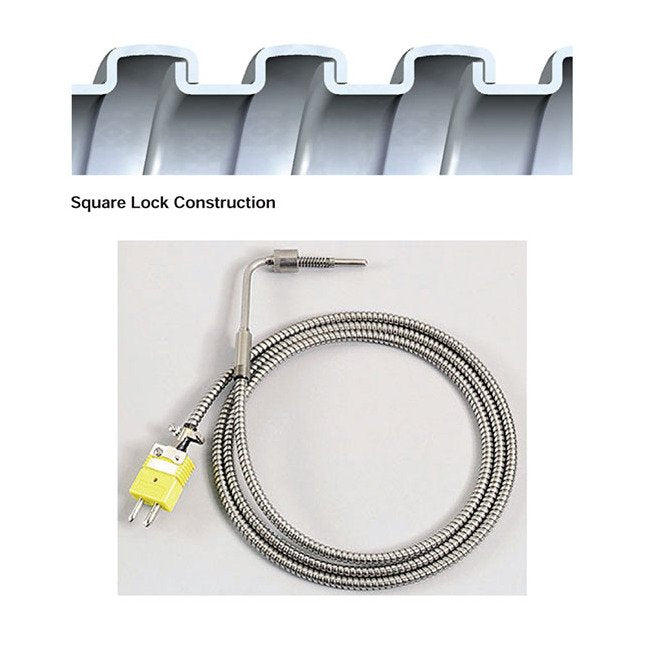

The Square Lock Stainless Steel Stripwound Hose is expertly crafted with a Type 304 stainless steel core, ensuring unparalleled crush and corrosion resistance. This hose comes with the option of extruded PVC, Silicone, PTFE, or Thermoplastic Rubber jackets for added versatility. Available in aluminum, brass, galvanized steel, and stainless steel variations, this hose is RoHS and WEEE compliant, meeting stringent industry standards. With a high crush resistance and maximum temperature of 1800ºF, this hose is ideal for applications in fiber optics, instrumentation, sensors, recording instruments, and temperature measuring devices.

Product Specifications

Application 0

Flexible with High Crush and Corrosion Resistance 1800ºF Maximum TemperatureFiber OpticsInstrumentationSensorsRecording InstrumentsTemperature Measuring Devices

Specifications Approx Inside Bend Radius

1 in | 25.4 mm

Specifications Approx Weight Per 100 Ft

2.3 lbs | 1.04 kg

Specifications Available Material

Aluminum | Brass | Galvanized Steel | Stainless Steel

Specifications Core Material

Stainless Steel

Specifications Industry Certifications

RoHS WEEE

Specifications Inside Diameter

0.125 to 0.137 in | 3.175 to 3.480 mm

Specifications Jacket Benefits

Zero Halogen

Specifications Jacket Material

None

Specifications Length

1000 ft | 304.8 m

Specifications Nominal Size

1/8 in | 3 mm

Specifications Note

Other sizes available on special order.

Specifications Outside Diameter

0.195 to 0.207 in | 4.953 to 5.258 mm

Specifications Packaging

Standard Reels

Specifications Type

Square Lock Stainless Steel Stripwound Hose
