Square Lock Stainless Steel Stripwound Hose - Type SL

Name: Square Lock Stainless Steel Stripwound Hose - Type SL
Brand: Anamet Electrical, Inc.
SKU: IND-1a2ab0
Price: 399.99 USD
Availability: OutOfStock

SKU:IND-1a2ab0

Durable Type SL Stainless Steel Stripwound Hose with corrosion resistance and RoHS/WEEE compliance. Ideal for industrial use.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

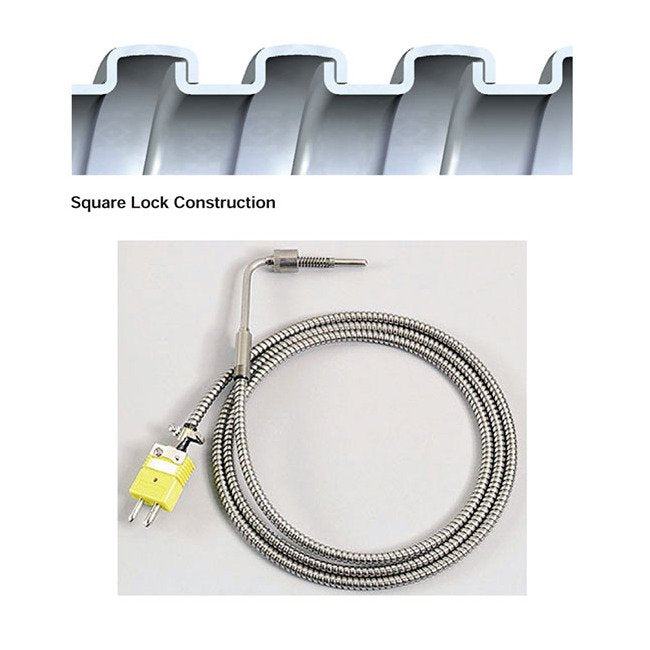

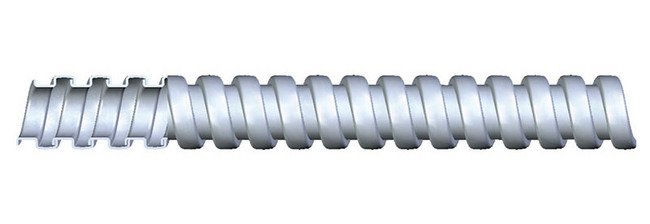

The Type SL Square Lock Stainless Steel Stripwound Hose is expertly crafted with a Type 304 stainless steel core, ensuring exceptional crush and corrosion resistance. With options for PVC, Silicone, PTFE, and Thermoplastic Rubber jackets, and available in brass, galvanized steel, and aluminum, this hose offers versatility and durability. Certified RoHS and WEEE compliant, it meets high industry standards for quality and sustainability, making it a reliable choice for industrial applications.

Product Specifications

Application 0

Flexible with High Crush and Corrosion Resistance 1800ºF Maximum TemperatureFiber OpticsInstrumentationSensorsRecording InstrumentsTemperature Measuring Devices

Specifications Approx Inside Bend Radius

1.25 in | 31.75 mm

Specifications Approx Weight Per 100 Ft

5.4 lbs | 2.45 kg

Specifications Available Material

Aluminum | Brass | Galvanized Steel | Stainless Steel

Specifications Core Material

Stainless Steel

Specifications Industry Certifications

RoHS WEEE

Specifications Inside Diameter

0.276 to 0.291 in | 7.010 to 7.391 mm

Specifications Jacket Benefits

Zero Halogen

Specifications Jacket Material

None

Specifications Length

600 ft | 182.88 m

Specifications Nominal Size

9/32 in | 7 mm

Specifications Note

Other sizes available on special order.

Specifications Outside Diameter

0.361 to 0.376 in | 9.169 to 9.550 mm

Specifications Packaging

Standard Reels

Specifications Type

Square Lock Stainless Steel Stripwound Hose - Type SL
