Square Lock Stainless Steel Stripwound Hose - Type SL

Name: Square Lock Stainless Steel Stripwound Hose - Type SL
Brand: Anamet Electrical, Inc.
SKU: IND-230607
Price: 299.99 USD
Availability: OutOfStock

SKU:IND-230607

Highly flexible and corrosion-resistant industrial hose with RoHS and WEEE compliance. Ideal for various applications.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

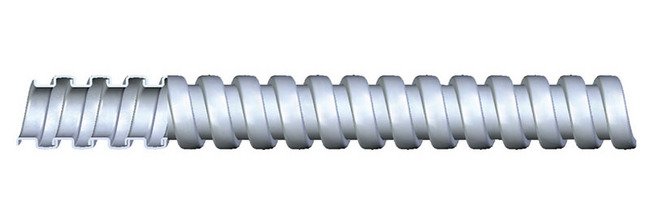

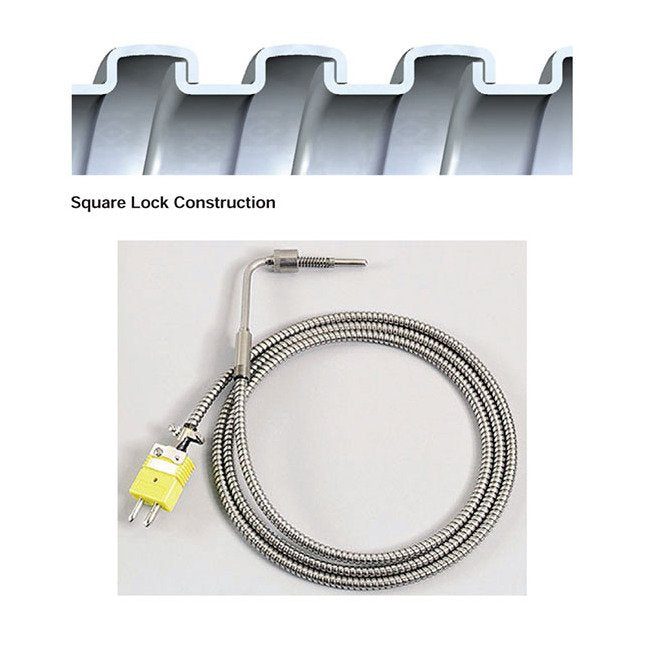

The Square Lock Stainless Steel Stripwound Hose - Type SL is expertly constructed with a Type 304 stainless steel core, ensuring exceptional crush and corrosion resistance. This industrial-grade hose is available in various materials such as aluminum, brass, galvanized steel, and stainless steel. It offers flexibility with high crush and corrosion resistance, making it ideal for applications in fiber optics, instrumentation, sensors, recording instruments, and temperature measuring devices. With industry certifications including RoHS and WEEE compliance, this hose guarantees top-notch quality and reliability.

Product Specifications

Application 0

Flexible with High Crush and Corrosion Resistance 1800ºF Maximum TemperatureFiber OpticsInstrumentationSensorsRecording InstrumentsTemperature Measuring Devices

Specifications Approx Inside Bend Radius

1.25 in | 31.75 mm

Specifications Approx Weight Per 100 Ft

6.7 lbs | 3.04 kg

Specifications Available Material

Aluminum | Brass | Galvanized Steel | Stainless Steel

Specifications Core Material

Stainless Steel

Specifications Industry Certifications

RoHS WEEE

Specifications Inside Diameter

0.302 to 0.317 in | 7.671 to 8.052 mm

Specifications Jacket Benefits

Zero Halogen

Specifications Jacket Material

None

Specifications Length

500 ft | 152.4 m

Specifications Nominal Size

5/16 in | 8 mm

Specifications Note

Other sizes available on special order.

Specifications Outside Diameter

0.412 to 0.427 in | 10.465 to 10.846 mm

Specifications Packaging

Standard Reels

Specifications Type

Square Lock Stainless Steel Stripwound Hose - Type SL
