Square Lock Stainless Steel Stripwound Hose - Type SL

Name: Square Lock Stainless Steel Stripwound Hose - Type SL
Brand: Anamet Electrical, Inc.
SKU: IND-f8d403
Price: 299.99 USD
Availability: OutOfStock

SKU:IND-f8d403

Durable Square Lock Stainless Steel Stripwound Hose - Type SL, offering crush and corrosion resistance with RoHS WEEE compliance.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

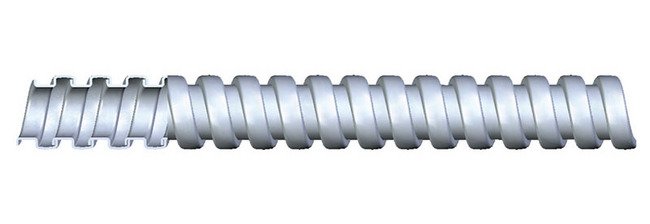

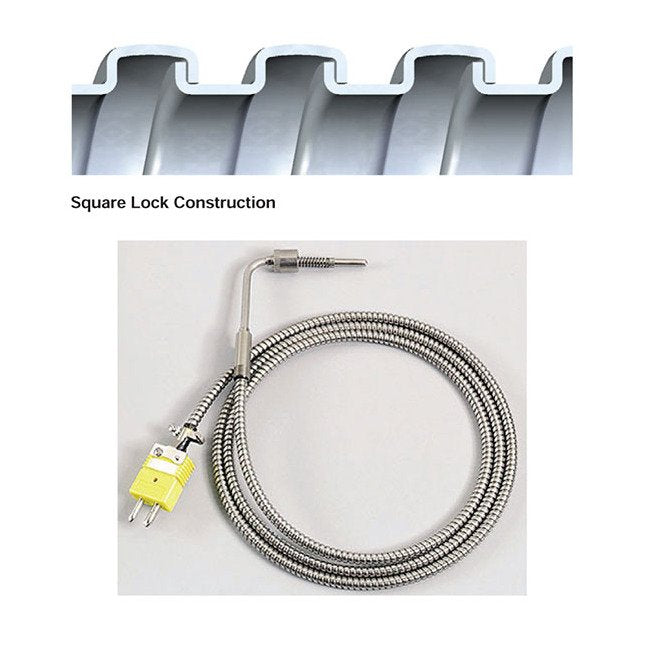

The Square Lock Stainless Steel Stripwound Hose - Type SL is expertly crafted from continuously interlocked Type 304 stainless steel core, ensuring exceptional crush and corrosion resistance. With options for PVC, Silicone, PTFE, and Thermoplastic Rubber jackets, this hose is versatile for various applications. Available in aluminum, brass, galvanized steel, and stainless steel, it meets RoHS WEEE compliance standards, making it a reliable choice for industrial use.

Product Specifications

Application 0

Flexible with High Crush and Corrosion Resistance 1800ºF Maximum TemperatureFiber OpticsInstrumentationSensorsRecording InstrumentsTemperature Measuring Devices

Specifications Approx Inside Bend Radius

1.5 in | 38.1 mm

Specifications Approx Weight Per 100 Ft

10.8 lbs | 4.90 kg

Specifications Available Material

Aluminum | Brass | Galvanized Steel | Stainless Steel

Specifications Core Material

Stainless Steel

Specifications Industry Certifications

RoHS WEEE

Specifications Inside Diameter

0.483 to 0.503 in | 12.268 to 12.776 mm

Specifications Jacket Benefits

Zero Halogen

Specifications Jacket Material

None

Specifications Length

250 ft | 76.2 m

Specifications Nominal Size

1/2 in | 13 mm

Specifications Note

Other sizes available on special order.

Specifications Outside Diameter

0.603 to 0.623 in | 15.316 to 15.824 mm

Specifications Packaging

Standard Reels

Specifications Type

Square Lock Stainless Steel Stripwound Hose - Type SL
