Square Lock Stainless Steel Stripwound Hose - Type SL

Name: Square Lock Stainless Steel Stripwound Hose - Type SL
Brand: Anamet Electrical, Inc.
SKU: IND-0abdab
Price: 999.99 USD
Availability: OutOfStock

SKU:IND-0abdab

Premium stainless steel stripwound hose with exceptional crush/corrosion resistance. Certified for RoHS & WEEE compliance. Ideal for industrial applications.

$999.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

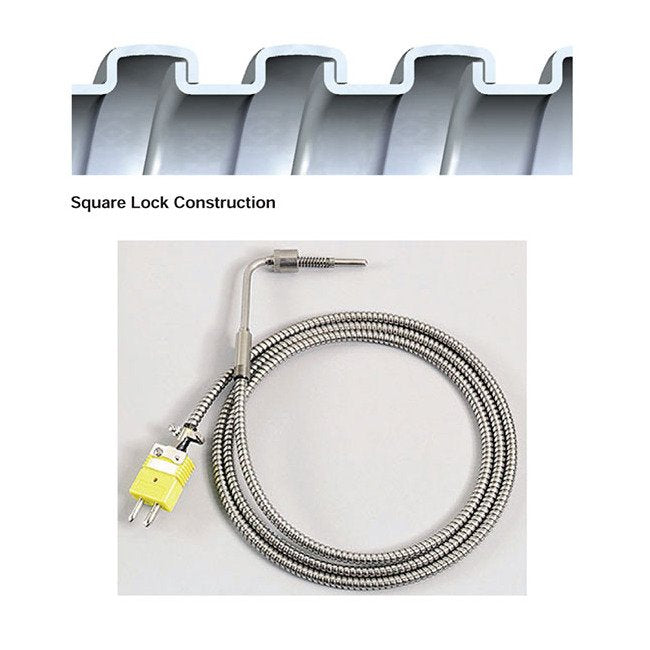

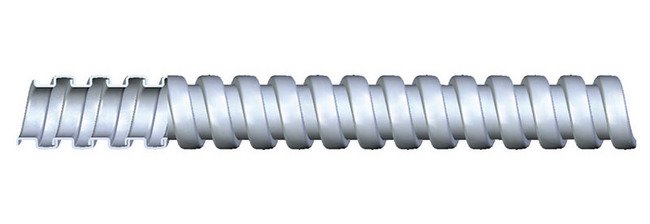

The Type SL Square Lock Stainless Steel Stripwound Hose is meticulously crafted with a Type 304 stainless steel core, ensuring unparalleled crush and corrosion resistance. Its versatility is further enhanced with optional PVC, Silicone, PTFE, and Thermoplastic Rubber jackets, available upon request. With variations in brass, galvanized steel, and aluminum materials, this hose caters to diverse industrial needs. Certified to meet RoHS and WEEE standards, this hose represents the pinnacle of quality and compliance, ideal for applications requiring high crush and corrosion resistance, like Fiber Optics, Instrumentation, Sensors, Recording Instruments, and Temperature Measuring Devices.

Product Specifications

Application 0

Flexible with High Crush and Corrosion Resistance 1800ºF Maximum TemperatureFiber OpticsInstrumentationSensorsRecording InstrumentsTemperature Measuring Devices

Specifications Approx Inside Bend Radius

1 in | 25.4 mm

Specifications Approx Weight Per 100 Ft

3.4 lbs | 1.54 kg

Specifications Available Material

Aluminum | Brass | Galvanized Steel | Stainless Steel

Specifications Core Material

Stainless Steel

Specifications Industry Certifications

RoHS WEEE

Specifications Inside Diameter

0.152 to 0.164 in | 3.861 to 4.166 mm

Specifications Jacket Benefits

Zero Halogen

Specifications Jacket Material

None

Specifications Length

1000 ft | 304.8 m

Specifications Nominal Size

5/32 in | 4 mm

Specifications Note

Other sizes available on special order.

Specifications Outside Diameter

0.232 to 0.244 in | 5.893 to 6.198 mm

Specifications Packaging

Standard Reels

Specifications Type

Square Lock Stainless Steel Stripwound Hose - Type SL
